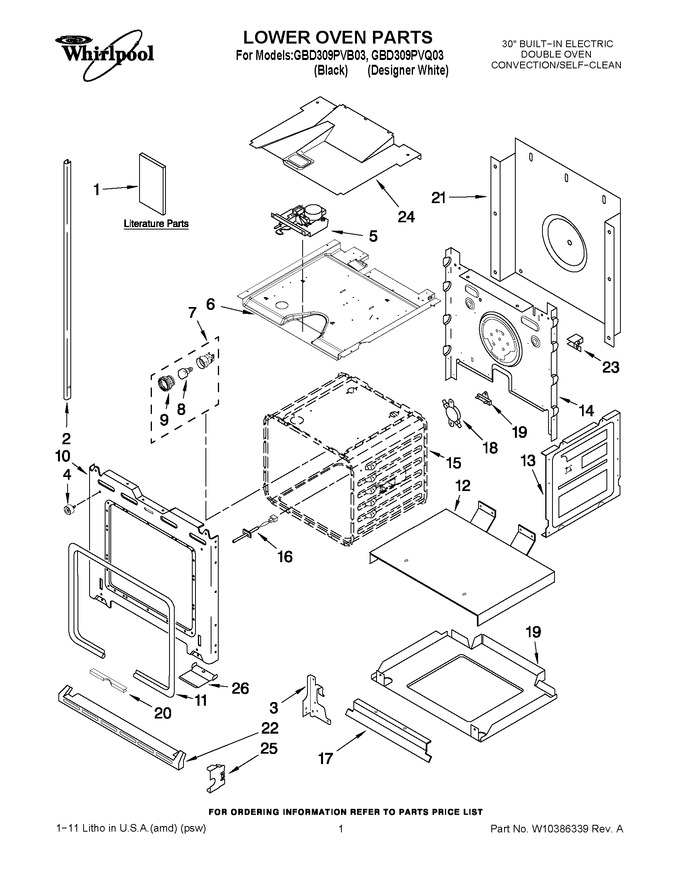

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10192042		Use & Care Guide		Appelez-nous	-
1	W10192049		Installation Instructions		Appelez-nous	-
1	W10185219		Tech Sheet		Appelez-nous	-
2	W10339501		Trim, Side Right (white)				$ 93.26
2	W10339499		Trim, Side Right (black)				$ 90.94
2	WPW10339500		Trim, Side Left (black)   (Replaces: W10339500)				$ 204.80
2	WPW10339502		Trim, Side Left (white)   (Replaces: W10339502)				$ 128.76
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
5	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
6	8303099		Top Chassis				$ 70.97
7	WPW10307114		Assembly, Oven Light   (Replaces: W10307114)			Immediately	$ 116.01
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W10169756		Lens, Light				$ 42.19
10	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
10	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
10	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
11	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
12	4451478		Support, Insulation				$ 54.10
13	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	W10161110		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
16	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
17	9760677		Deflector, Vent				$ 155.46
18	WP9759242		Fuse, Thermal   (Replaces: 9759242)			Immediately	$ 85.57
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
19	9759713		Base, Chassis				$ 100.19
20	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
20	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
21	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
22	WPW10207689		Trim, Bottom Vent (white)   (Replaces: W10207690)				$ 205.84
22	WPW10207689		Trim, Bottom Vent (black)   (Replaces: W10207689)				$ 205.84
23	4449845		Support, Bracket		Appelez-nous	-
23	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
24	8302349		Divider, Center Vent				$ 142.26
25	4452152		Bracket, Mounting Bottom Vent Trim				$ 35.18
26	4455807		Deflector, Vent Box		Appelez-nous	-
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
NI	4450365		Insulation, Back				$ 70.95
