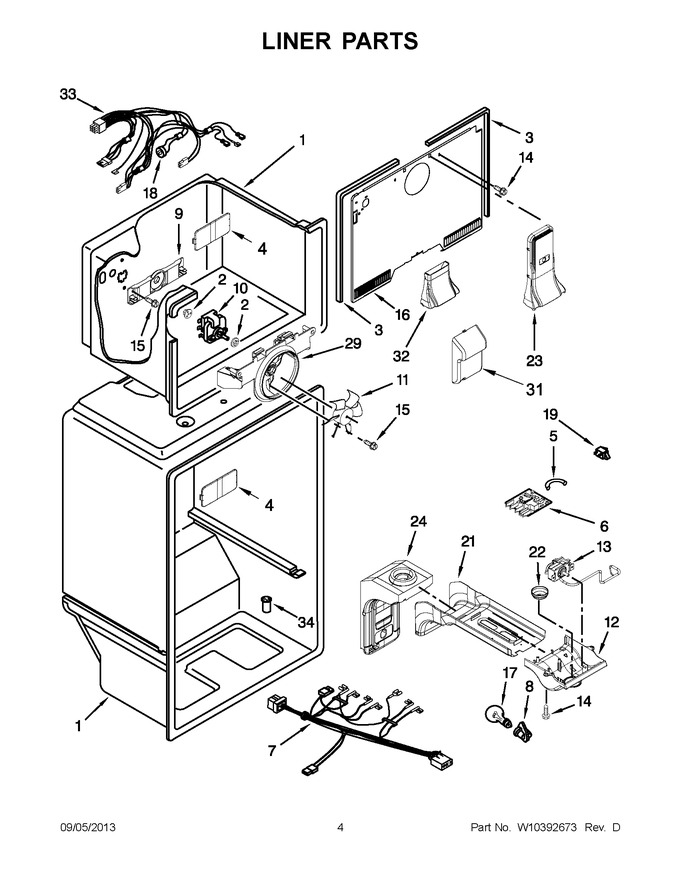

03 - Liner Parts


04 - Shelf Parts


05 - Door Parts


06 - Unit Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP2264462		Grommet   (Replaces: 2197380)			Immediately	$ 46.17
3	WP2254360		Gasket, Evaporator Cover   (Replaces: 2254359)				$ 28.12
4	W10336009		Screw Cup				$ 77.40
5	WP2196003		Thermostat Tube Barrier   (Replaces: W10381575)				$ 8.35
6	WPW10352689		Adaptive Defrost Control   (Replaces: W10352689)				$ 299.70
7	W10318068		Wire Assembly, Control Box				$ 132.58
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
9	2254454		Bracket Evaporator Fan, Rear			Immediately	$ 75.44
10	WPW10189703		Fan Motor   (Replaces: W10208121)			Immediately	$ 70.17
11	WP2163777		Blade, Fan   (Replaces: 2200509)			Immediately	$ 66.15
12	W10316941		Control Box				$ 98.58
13	WPW10584888		Thermostat Assembly   (Replaces: W10343913)			Immediately	$ 197.80
14	WP489478		Screw   (Replaces: 489478)				$ 8.18
15	WP488163		Screw   (Replaces: 488208)				$ 7.92
16	W10305172		Cover, Evaporator		Appelez-nous	-
17	W10887190		Light Bulb, Blue   (Replaces: W10311528)			Immediately	$ 19.23
18	WPW10392132		Defrost, Bi-metal   (Replaces: W10392132)			Immediately	$ 9.05
19	W11384469		Switch, Rocker Arm (refrigerator)   (Replaces: 1118894)			Immediately	$ 39.09
21	WPW10305175		Air Diffuser Cover   (Replaces: W10305175)				$ 114.36
22	W10356940		Knob		Appelez-nous	-
23	W10305174		Air Tower, Fc				$ 43.06
24	W10376137		Air Diffuser Assembly		Appelez-nous	-
29	W10850162		Bracket, Fan Motor   (Replaces: W10321162)			Immediately	$ 32.47
31	WPW10339203		Water Tube Cover   (Replaces: W10339203)				$ 7.55
32	W10396926		Assembly, Tower Connection				$ 39.05
33	W10339629		Evaporator Fan Wire Assembly		Appelez-nous	-
34	WP2210509		Valve Tube, Body   (Replaces: 2171931)				$ 99.15
