01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts

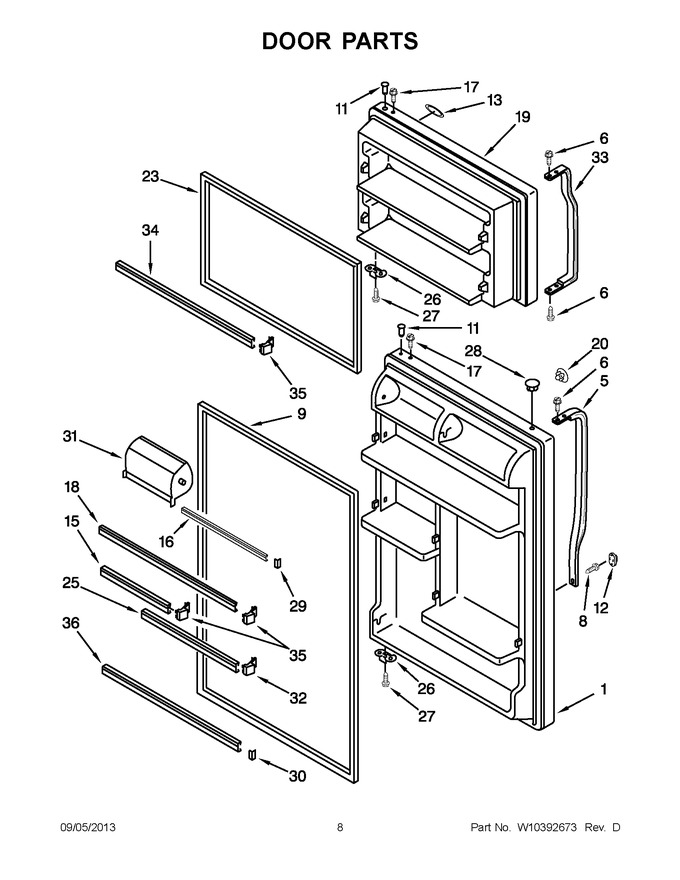

05 - Door Parts
06 - Unit Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10371932 | Refrigerator Door (includes Illus. 9 & 11) (stainless) |
|
- | |||||
| 1 | 2183948 | Refrigerator Door (includes Illus. 9 & 11) (white) |
|
- | |||||
| 1 | 2213386 | Refrigerator Door (includes Illus. 9 & 11) (black) |
|
- | |||||
| 5 | WP2202807W | Handle, Refrigerator (white) (Replaces: 2202807W) |
|
$ 146.68 | |||||
| 5 | 2202807B | Handle, Refrigerator (black) |
|
$ 66.99 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.36 | |||||
| 9 | 2159057 | Door Gasket, R.c. Magnetic (beige) (Replaces: 2202874) |
|
Immediately | $ 168.76 | ||||
| 9 | 2177305 | Door Gasket, R.c. Magnetic (black) (Replaces: 2202881) |
|
$ 261.06 | |||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 12 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 7.33 | ||||
| 12 | WP2202819B | Cover, Screw (black) (Replaces: 2202819B) |
|
$ 10.29 | |||||
| 13 | W11178521 | White (Replaces: W10387117) |
|
Immediately | $ 56.82 | ||||
| 15 | WPW10463613 | Trim, Door Shelf (Replaces: W10463613) |
|
$ 84.89 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: W10421482) |
|
$ 111.89 | |||||
| 17 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 18 | WPW10464028 | Trim, Door Shelf (Replaces: W10464028) |
|
$ 111.74 | |||||
| 19 | 2200710 | Freezer Door (includes Illus. 11 & 23) (black) |
|
- | |||||
| 19 | 2182487 | Freezer Door (includes Illus. 11 & 23) (white) |
|
- | |||||
| 19 | W10371931 | Freezer Door (includes Illus. 11 & 23) (stainless) |
|
- | |||||
| 20 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 20 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 6.85 | |||||
| 23 | 2159327 | Door Gasket, F.c. Magnetic (beige) (Replaces: 2214966) |
|
Immediately | $ 148.12 | ||||
| 23 | 2177304 | Door Gasket, F.c. Magnetic (black) (Replaces: 2214968) |
|
$ 292.22 | |||||
| 25 | WPW10463614 | Trim, Door Shelf (Replaces: W10463614) |
|
$ 101.27 | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 28 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 28 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
Immediately | $ 21.79 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.23 | ||||
| 30 | WP2156006 | Plug, Trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 31 | WP2218113 | Door, Compartment (Replaces: 2218113) |
|
Immediately | $ 45.30 | ||||
| 32 | WP2195915 | Trim Endcap (Replaces: 2195915) |
|
$ 12.35 | |||||
| 33 | WP2202806W | Handle, Freezer (white) (Replaces: 2202806W) |
|
$ 139.86 | |||||
| 33 | WP2202806B | Handle, Freezer (black) (Replaces: 2202806B) |
|
$ 139.11 | |||||
| 34 | WPW10463615 | Trim, Door Shelf (Replaces: W10463615) |
|
$ 104.75 | |||||
| 35 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 36 | WPW10421484 | Trim, Door Shelf (Replaces: W10421484) |
|
$ 122.63 |
