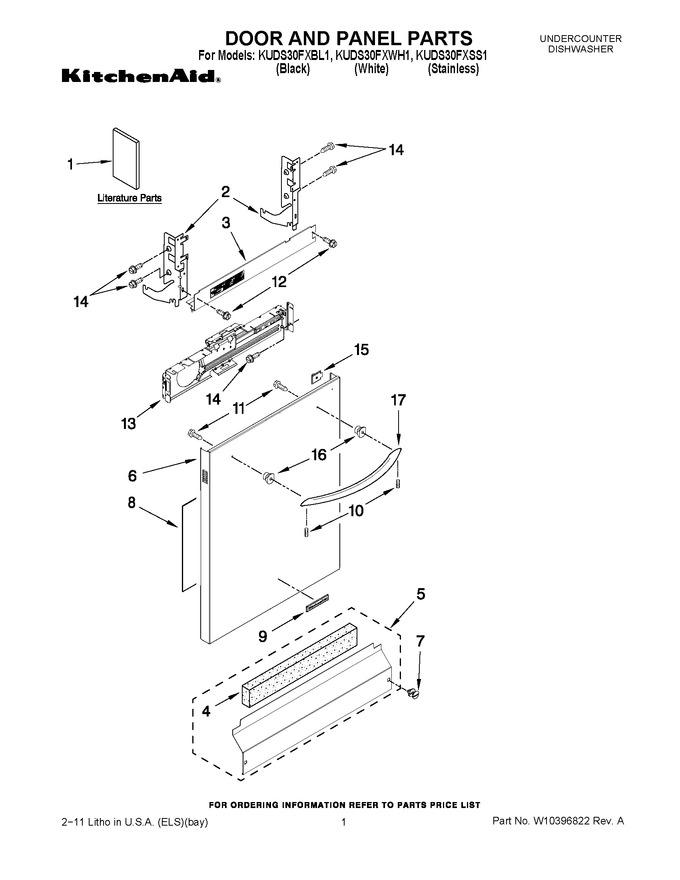

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10195615 | Tech Sheet/english |
|
- | |||||
| 1 | W10195616 | Tech Sheet/french |
|
- | |||||
| 1 | W10321585 | Instructions, Installation |
|
- | |||||
| 1 | W10300932 | Energy Guide |
|
- | |||||
| 1 | W10300928 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10300596 | Guide, Use & Care (spanish) |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10321449) |
|
Immediately | $ 32.88 | ||||
| 4 | W10831329 | Insulation, Access Panel (Replaces: 8268581) |
|
Immediately | $ 43.30 | ||||
| 5 | WPW10526115 | Access Panel (white) (Replaces: W10369030) |
|
$ 175.17 | |||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10369029) |
|
Immediately | $ 149.53 | ||||
| 6 | W10195872 | Panel, Full Front (includes Items 9 & 15) (white) |
|
$ 171.59 | |||||
| 6 | WPW10195873 | Panel, Full Front (includes Items 9 & 15) (black) (Replaces: W10195873) |
|
$ 363.36 | |||||
| 6 | WPW10195870 | Panel, Full Front (includes Items 9 & 15) (stainless) (Replaces: W10195870) |
|
$ 397.17 | |||||
| 7 | WPW10503549 | Fastener (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 7 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 8 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 9 | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 73.70 | |||||
| 9 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 9 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 69.98 | |||||
| 10 | WPW10307614 | Screw (Replaces: W10307614) |
|
Immediately | $ 7.55 | ||||
| 11 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 12 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 13 | W11116870 | Bracket, Panel Control (Replaces: W10194911) |
|
$ 89.95 | |||||
| 14 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 15 | W10319007 | Light Pipe |
|
$ 72.00 | |||||
| 16 | W11157086 | Stud (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 17 | W10195738 | Handle, Assembly (stainless) |
|
- | |||||
| 17 | W10195735 | Handle, Assembly (black) |
|
- | |||||
| 17 | W10195736A | Handle, Assembly (white) (Replaces: W10195736) |
|
$ 63.06 |
