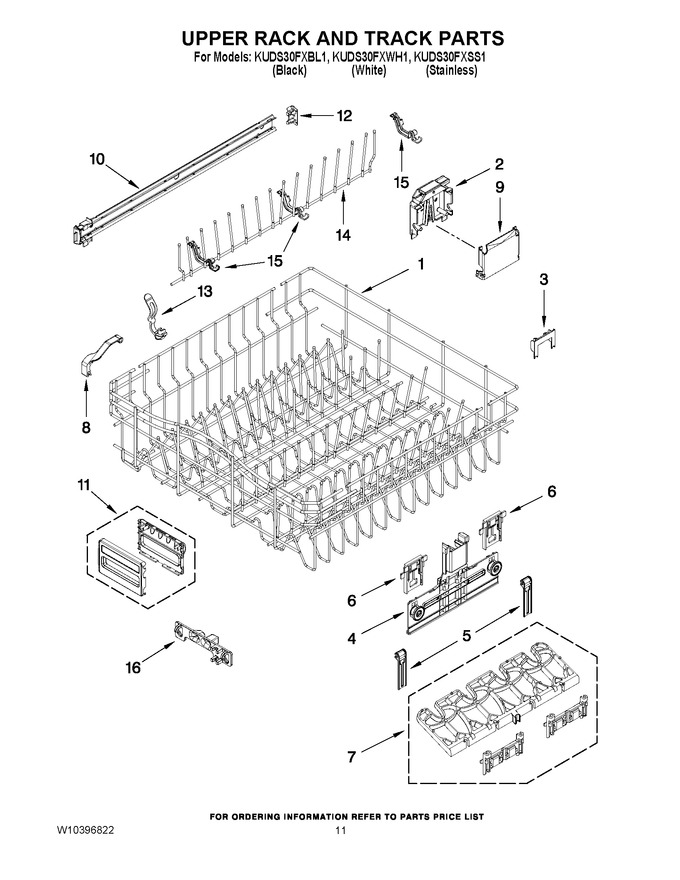

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper   (Replaces: W10312791)			Immediately	$ 179.58
2	WPW10588164		Housing, Adjuster (left Hand)   (Replaces: W10320664)			Immediately	$ 16.84
2	WPW10588165		Housing, Adjuster (righthand)   (Replaces: W10320665)			Immediately	$ 54.81
3	WPW10250160		Clip-lock Adjuster Arm   (Replaces: W10250160)			Immediately	$ 40.55
4	W10712394		Adjuster Assembly   (Replaces: W10253546)			Immediately	$ 71.15
5	WPW10195839		Strap, Tether Adjuster   (Replaces: W10195839)			Immediately	$ 30.81
6	WPW10195840		Positioner, Adjuster   (Replaces: W10195840)			Immediately	$ 51.32
7	WPW10082649		Cup, Shelf   (Replaces: W10082649)			Immediately	$ 109.45
8	WPW10267076		Clip, Dispenser Guard   (Replaces: W10267076)				$ 31.56
9	WPW10250162		Cover, Adjuster   (Replaces: W10250162)			Immediately	$ 7.61
10	WPW10195623		Track, Assembly   (Replaces: W10324563)			Immediately	$ 53.37
11	W11110542		Handle, Dishrack   (Replaces: W10282826)				$ 129.58
12	WPW10195622		Stop, Track Non-removable   (Replaces: W10195622)			Immediately	$ 10.81
13	WPW10077844		Clip, No Flip   (Replaces: W10077844)			Immediately	$ 11.45
14	W10727426		Tine Row   (Replaces: 8562030)			Immediately	$ 85.10
15	WPW10082853		Clip, Pivot   (Replaces: W10082853)			Immediately	$ 5.40
16	WP8539102		Positioner, Dual   (Replaces: 8539102)				$ 103.88
