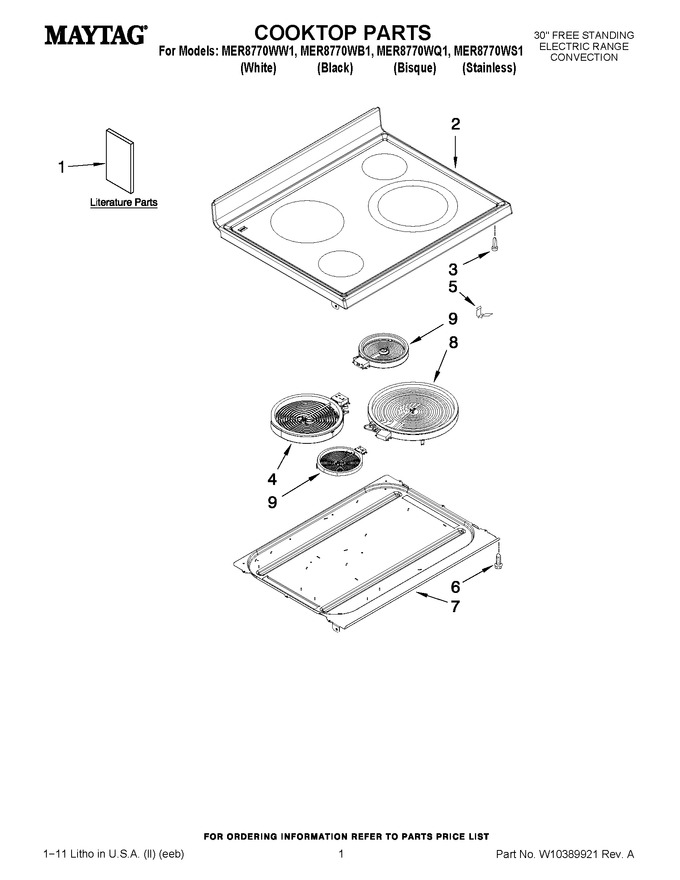

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239458 | Use & Care Guide |
|
- | |||||
| 1 | W10249695 | Wiring Diagram |
|
- | |||||
| 1 | W10258095 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Brochure, Safe Tip |
|
- | |||||
| 2 | W10225473 | Cooktop (white) |
|
- | |||||
| 2 | W10225474 | Cooktop (black) |
|
- | |||||
| 2 | W10225472 | Cooktop (bisque) |
|
- | |||||
| 3 | 74008761 | Spacer, Snap-in (Replaces: 8010P149-60) |
|
$ 8.81 | |||||
| 4 | WPW10251108 | Element, (lf) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 5 | 74007134 | Spring, Element (Replaces: 7803P087-60) |
|
$ 12.26 | |||||
| 6 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 7 | W10170717 | Bottom, Burner Box |
|
- | |||||
| 8 | W10823727 | Element (rf) (Replaces: W10162040) |
|
Immediately | $ 342.63 | ||||
| 9 | W11171119 | Element (lr & Rr) (Replaces: 8273994) |
|
Immediately | $ 182.23 |
