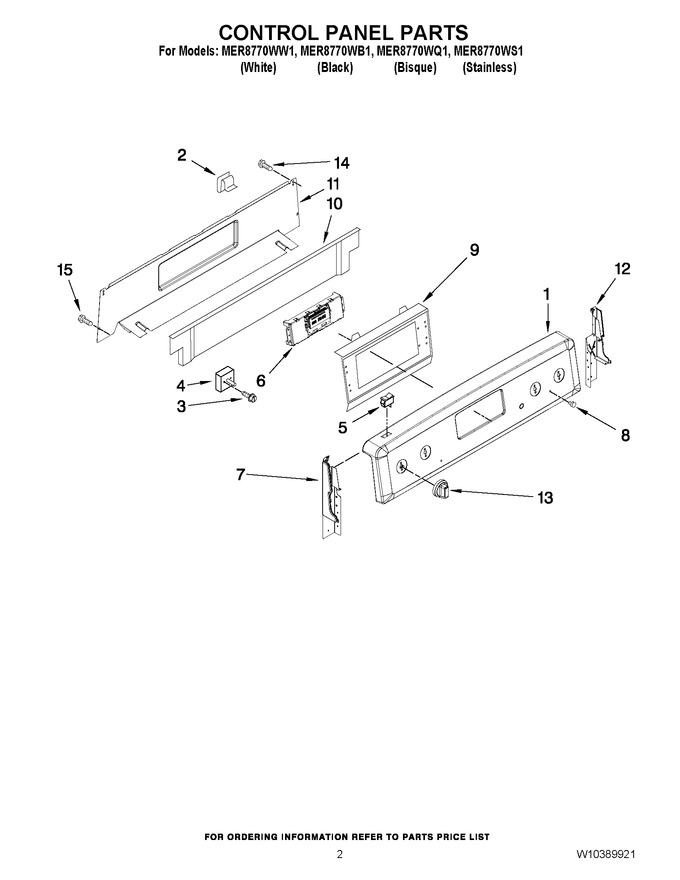

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10225487 | Panel, Backguard (black) |
|
- | |||||
| 1 | W10225486 | Panel, Backguard (white) |
|
- | |||||
| 1 | W10225488 | Panel, Backguard (bisque) |
|
- | |||||
| 1 | W10225489 | Panel, Backguard (stainless Steel) |
|
- | |||||
| 2 | WP8273564 | Clip, Rear Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 3 | WP3400882 | Screw, Switch (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | 5500-287 | Switch, Infinte (lr & Rr) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10149355 | Switch, Infinte (element (lf & Rf)) (Replaces: W10149355) |
|
Immediately | $ 204.91 | ||||
| 5 | 8273501 | Switch, Rocker (bisque) |
|
- | |||||
| 5 | 3149360 | Switch-rocker (white) |
|
$ 89.01 | |||||
| 5 | WP4314961 | Switch-rocker (black) (Replaces: 3148564) |
|
$ 93.95 | |||||
| 6 | W10236259 | Control (black) |
|
- | |||||
| 6 | W10236261 | Control (stainless) |
|
- | |||||
| 6 | W10236260 | Control (bisque) |
|
- | |||||
| 6 | W10236258 | Control (white) |
|
- | |||||
| 7 | W10163969 | End Cap, Left (black) |
|
$ 34.61 | |||||
| 7 | W10163967 | End Cap, Left (white) |
|
$ 32.00 | |||||
| 7 | W10171416 | End Cap, Left (bisque) |
|
- | |||||
| 8 | WP3196068 | Lens, Red (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10138683) |
|
Immediately | $ 84.81 | ||||
| 10 | 3604F381-19 | Shield, Vent |
|
$ 31.31 | |||||
| 11 | W10243038 | Cover, Rear Wire |
|
$ 49.02 | |||||
| 12 | W10163970 | End Cap, Right (black) |
|
$ 34.76 | |||||
| 12 | W10171417 | End Cap, Right (bisque) |
|
- | |||||
| 12 | W10163968 | End Cap, Right (white) |
|
- | |||||
| 13 | W10211373 | Knob (bisque) |
|
- | |||||
| 13 | WPW10211371 | Knob (white/chrome) (Replaces: W10211371) |
|
Immediately | $ 21.23 | ||||
| 13 | W10291145 | Knob (stainless Steel) |
|
$ 20.82 | |||||
| 13 | W11193834 | Knob (black/chrome) (Replaces: W10211372) |
|
$ 88.98 | |||||
| 14 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 14 | WP3196175 | Screw (white) (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 |
