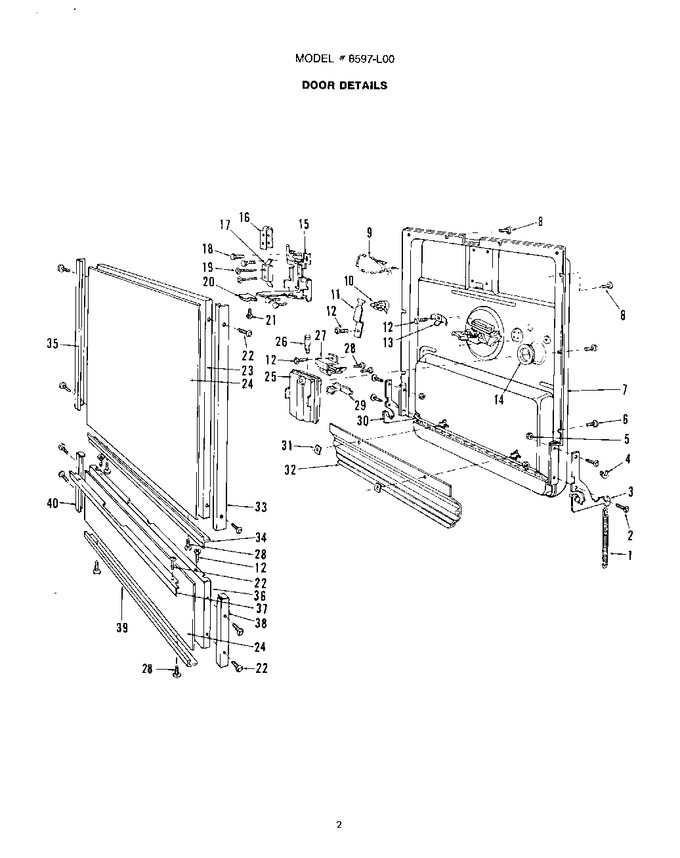

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809360		Door Spring		Appelez-nous	-
2	803311		Screw No. 10-24 X 5/8`` Lg. C.r. Truss Hd. Chr. Pl.		Appelez-nous	-
3	805681		Counterbalance Arm Assembly - R.h.		Appelez-nous	-
4	805884		Spring Pad		Appelez-nous	-
5	M0282009		Nut   (Replaces: 808470)				$ 12.66
6	WP7101P126-60		Screw No. 8 X 7/16`` Lg. C.r. Truss Hd. St. St.   (Replaces: 809055)			Immediately	$ 7.52
7	809054		Door Assembly		Appelez-nous	-
8	808749		Screw No.8x5/8``lg. C.r. Truss Hd. St. St.		Appelez-nous	-
9	809075		Wire Tie		Appelez-nous	-
10	808956		Thermostat (water Heat)		Appelez-nous	-
11	809097		Thermostat Retainer		Appelez-nous	-
12	WP90767		Screw 8 X 3/8`` Lg. C.r. Hex Washer Hd. Black   (Replaces: 808658)			Immediately	$ 7.43
13	807213		Grounding Terminal		Appelez-nous	-
14	805631		Grommet - Dispenser		Appelez-nous	-
15	807016		Latch Assembly		Appelez-nous	-
16	807450		Cover - Switch		Appelez-nous	-
17	807043		Switch		Appelez-nous	-
18	809029		Screw No. 8a X 5/8`` Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
19	808618		Screw 6-32x1``lg. Hex Hd. Cad. Pl.		Appelez-nous	-
20	808712		Latch Knob		Appelez-nous	-
21	809163		Screw 8-32 X 5/16`` Lg. Hex Washer Hd. Cad. Pl		Appelez-nous	-
22	WP74004005		Screw No.6x1/4`` Lg. C.r. Truss Hd. Chrome Pl.   (Replaces: 807293)				$ 7.79
23	870262		Door Panel (white)		Appelez-nous	-
24	808913		Door & Access Panel Inserts (black)		Appelez-nous	-
24	808908		Door & Access Panel Inserts (almond)		Appelez-nous	-
24	808909		Door And Access Panel Inserts (avocado)		Appelez-nous	-
24	808910		Door & Access Panel Inserts (platinum)		Appelez-nous	-
24	808911		Door & Access Panel Inserts (toast)		Appelez-nous	-
24	808912		Door & Access Panel Inserts (wheat)		Appelez-nous	-
24	808914		Door & Access Panel Inserts (white)		Appelez-nous	-
24	808916		Door & Access Panel Inserts (coffee)		Appelez-nous	-
25	806753		Body Assembly		Appelez-nous	-
26	806757		Plunger		Appelez-nous	-
27	809109		Bi-metal Assembly		Appelez-nous	-
28	807501		Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
29	806755		Fill Plug		Appelez-nous	-
30	805682		Arm Assembly - Counterbalance L.h.		Appelez-nous	-
31	809026		Speednut		Appelez-nous	-
32	809025		Baffle Seal		Appelez-nous	-
33	808976		Door Panel Trim - R.h.		Appelez-nous	-
34	COMM PART		Door Panel Trim-bottom   (Replaces: 807347)		Appelez-nous	-
35	808977		Door Panel Trim - L.h.		Appelez-nous	-
36	809108		Access Panel (white)		Appelez-nous	-
37	808346		Access Panel Trip - Top		Appelez-nous	-
38	808028		Access Panel Trim-r.h.		Appelez-nous	-
39	808027		Access Panel Trim-bottom		Appelez-nous	-
40	808029		Access Panel Trim - L.h.		Appelez-nous	-
