SELECT A DIAGRAM

02 - Control Panel


03 - Door


04 - Tub

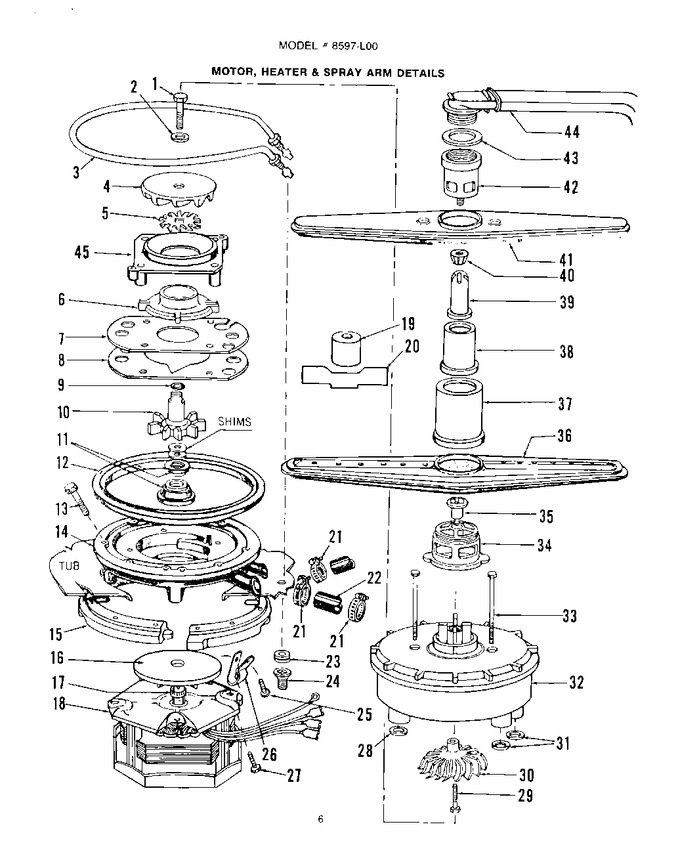

05 - Motor, Heater And Spray Arm


06 - Frame


07 - Rack


08 - Detergent Cup


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806353		Screw No.10-32x2-1/4`` Lg. Hex Hd. St. St.		Appelez-nous	-
2	803367		Washer		Appelez-nous	-
3	809004		Heater (includes Key Nos. 23 & 24)		Appelez-nous	-
4	809005		Upper Impeller		Appelez-nous	-
5	808075		Blade - Macerator		Appelez-nous	-
6	806267		Shroud - Impeller		Appelez-nous	-
7	809006		Pump Plate		Appelez-nous	-
8	809007		Pump Gasket		Appelez-nous	-
9	806521		``o`` Ring		Appelez-nous	-
10	809110		Pump Seal Kit (includes Key Nos. 2,4,5,9,11,& 20)		Appelez-nous	-
11	803903		Water Seal		Appelez-nous	-
12	809008		Gasket		Appelez-nous	-
13	807268		Screw No.10x1``lg. Hex Washer Hd. St. St.		Appelez-nous	-
14	809009		Housing		Appelez-nous	-
15	807712		Clamp Ring		Appelez-nous	-
16	808899		Watershield Fan (includes Key No. 17)		Appelez-nous	-
17	808899		Tolerance Ring		Appelez-nous	-
18	809100		Motor Assembly (includes Key Nos. 1,9,16, & 20)		Appelez-nous	-
19	803923		Seal Installation Tool (required When Installing Key Nos. 10, 11 Or 18)		Appelez-nous	-
20	807077		Gage - Seal Shim		Appelez-nous	-
21	WP285655		Hose Clamp   (Replaces: 808186)			Immediately	$ 7.93
22	808174		Hose - Connector		Appelez-nous	-
23	5300806833		Grommet - Heater   (Replaces: 806833)				$ 5.34
24	154106202		Heater Nut 1/2 20 Brass   (Replaces: 806834)			Immediately	$ 18.32
25	807270		Screw No.8x5/8`` Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
26	808442		Clamp		Appelez-nous	-
27	809022		Screw No. 10 X 1 Lg. Hex Washer Hd. Cad. Pl.		Appelez-nous	-
28	809016		O-ring		Appelez-nous	-
29	809073		Screw No. 8 X 3/4`` Lg. Hex Washer Hd. St. St.		Appelez-nous	-
30	809014		Diffuser		Appelez-nous	-
31	809015		O-ring		Appelez-nous	-
32	809011		Xfilter Body Assembly		Appelez-nous	-
33	809012		Screw No. 10 X 2 7/8`` Lg. Hex Hd. St. St.		Appelez-nous	-
34	809046		Bearing		Appelez-nous	-
35	809018		Spray Arm Bolt		Appelez-nous	-
36	808177		Spray Arm Assembly		Appelez-nous	-
37	808178		Tower Base		Appelez-nous	-
38	808179		Tower Section		Appelez-nous	-
39	808180		Tower Tip		Appelez-nous	-
40	808181		Nut		Appelez-nous	-
41	809021		Spray Arm Assembly		Appelez-nous	-
42	808183		Distributor		Appelez-nous	-
43	808184		Gasket		Appelez-nous	-
44	808185		Elbow & Tube Assembly		Appelez-nous	-
45	809020		Spacer Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
