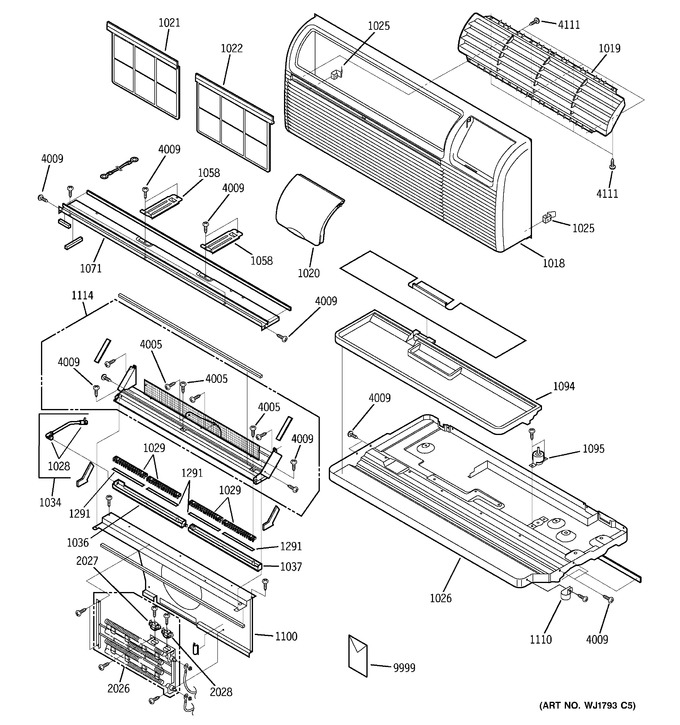

1 - Grille, Heater & Base Parts
2 - Motor & Chassis Parts
3 - Control Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1018 | WP71X10009 | Front Panel |
|
- | |||||
| 1019 | WP71X10003 | R. Louver |
|
- | |||||
| 1020 | WP71X10004 | Control Cover |
|
- | |||||
| 1021 | WP85X10003 | Air Filter L |
|
- | |||||
| 1022 | WP85X10004 | Air Filter R |
|
- | |||||
| 1025 | WP02X10001 | Spring |
|
- | |||||
| 1026 | WJ89X10021 | Base Pan Ass'y |
|
- | |||||
| 1028 | WP03X10002 | Rubber Clamp |
|
- | |||||
| 1029 | WJ05X10017 | Dribbler S |
|
- | |||||
| 1034 | WJ57X10010 | Tube K3 |
|
- | |||||
| 1036 | WJ05X10018 | Dribbler L |
|
- | |||||
| 1037 | WJ05X10019 | Dribbler R |
|
- | |||||
| 1058 | WP65X10001 | Brace |
|
- | |||||
| 1071 | WP79X10011 | Bulkhead Cover Ass'y |
|
- | |||||
| 1094 | WP70X10024 | Drain Tray |
|
- | |||||
| 1095 | WJ58X10017 | Drain Valve |
|
- | |||||
| 1100 | WP78X10003 | Orifice |
|
- | |||||
| 1110 | WJ03X10006 | Wire Holder |
|
- | |||||
| 1114 | WP71X10011 | Plate Ass'y Sk |
|
- | |||||
| 1291 | WP60X10001 | Seal |
|
- | |||||
| 2026 | WP70X10022 | Heater Ass'y |
|
- | |||||
| 2027 | WP28X10005 | Protector |
|
- | |||||
| 2028 | WP28X10007 | Protecter |
|
- | |||||
| 4005 | WJ01X10038 | Tapping Screw |
|
- | |||||
| 4009 | WJ01X10037 | Special Screw |
|
- | |||||
| 4111 | WJ01X10110 | Special Screw |
|
- | |||||
| 9999 | 31-60776 | Mini-manual |
|
- | |||||
| 9999 | 49-7415 | Use & Care Manual |
|
- |
