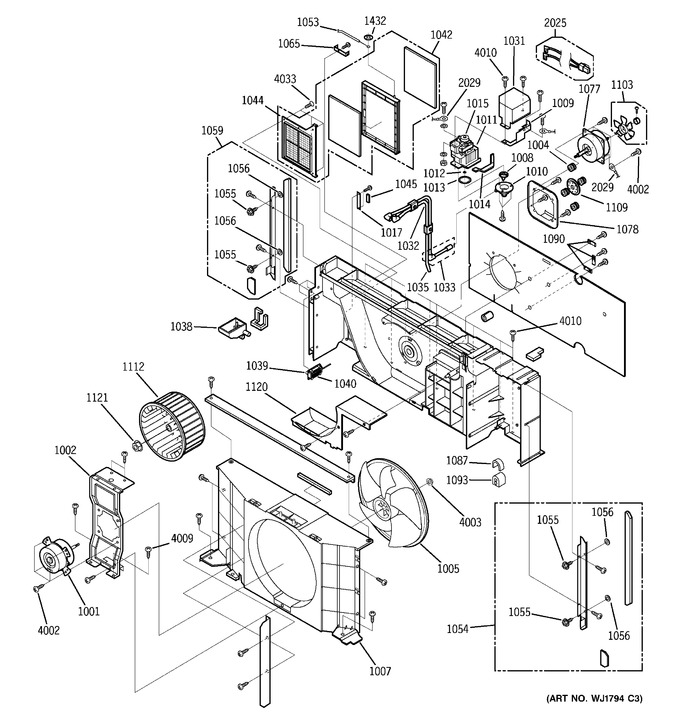

1 - Grille, Heater & Base Parts
2 - Motor & Chassis Parts
3 - Control Parts
4 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1001 | WP94X10106 | Fan Motor |
|
- | |||||
| 1002 | WJ65X10046 | Out Door Motor Mount |
|
- | |||||
| 1004 | WJ01X10034 | Motor Cushion |
|
- | |||||
| 1005 | WJ73X10047 | Propeller Fan |
|
- | |||||
| 1007 | WP76X10023 | Condnser Shroud |
|
- | |||||
| 1008 | WP73X10002 | Fan |
|
- | |||||
| 1009 | WP79X10005 | Pump Cover B |
|
- | |||||
| 1010 | WP76X10009 | P. Fan Housing |
|
- | |||||
| 1011 | WP76X10010 | P. Fan Housing |
|
- | |||||
| 1012 | WJ05X10015 | O Ring S |
|
- | |||||
| 1013 | WJ05X10016 | O Ring L |
|
- | |||||
| 1014 | WJ40X10008 | Pump Insulator |
|
- | |||||
| 1015 | WP94X10011 | Icr Pump Motor |
|
- | |||||
| 1017 | WP01X10011 | Magnet Plate |
|
- | |||||
| 1031 | WP79X10006 | Pump Cover |
|
- | |||||
| 1032 | WJ57X10009 | Tube K2 |
|
- | |||||
| 1033 | WJ57X10002 | Suction Pipe K1 |
|
- | |||||
| 1035 | WJ40X10017 | Tube K |
|
- | |||||
| 1038 | WJ46X10002 | Receiver Tank |
|
- | |||||
| 1039 | WJ14X10008 | Damper Lever |
|
- | |||||
| 1040 | WJ05X10014 | Damper Holder |
|
- | |||||
| 1042 | WP70X10023 | Damper Ass'y |
|
- | |||||
| 1044 | WP76X10002 | Frame |
|
- | |||||
| 1045 | WP01X10001 | Magnet |
|
- | |||||
| 1053 | WP01X10003 | Damper Wire |
|
- | |||||
| 1054 | WJ82X10023 | Cab. Angle Ass'y |
|
- | |||||
| 1055 | WP01X10004 | Special Screw |
|
- | |||||
| 1056 | WP01X10005 | Rubber Washer |
|
- | |||||
| 1059 | WJ82X10024 | Cab. Angle Ass'y Lh |
|
- | |||||
| 1065 | WJ82X10026 | Wire Angle |
|
- | |||||
| 1077 | WP94X10112 | Fan Motor |
|
- | |||||
| 1078 | WJ65X10035 | Motor Angle |
|
- | |||||
| 1087 | WJ40X10015 | Bulkhead Insulator |
|
- | |||||
| 1090 | WJ01X10159 | Clamp |
|
- | |||||
| 1093 | WJ40X10014 | Bulkhead Insulator |
|
- | |||||
| 1103 | WP73X10006 | Fan |
|
- | |||||
| 1109 | WJ01X10033 | In Motor Rubber |
|
- | |||||
| 1112 | WP73X10005 | Centrigugal Fan |
|
- | |||||
| 1120 | WP78X10004 | Casing Tary |
|
- | |||||
| 1121 | WJ1X982 | Special Nut |
|
- | |||||
| 1432 | WP02X10003 | Push Nut |
|
- | |||||
| 2025 | WJ37X10025 | Icr Lead Wire |
|
- | |||||
| 2029 | WJ37X10001 | Lead Wire |
|
- | |||||
| 4002 | WJ01X10035 | Special Screw |
|
- | |||||
| 4003 | WJ1X981 | Special Nut |
|
- | |||||
| 4009 | WJ01X10037 | Special Screw |
|
- | |||||
| 4010 | WJ01X10012 | Special Screw |
|
- | |||||
| 4033 | WJ01X10158 | Tapping Screw |
|
- |
