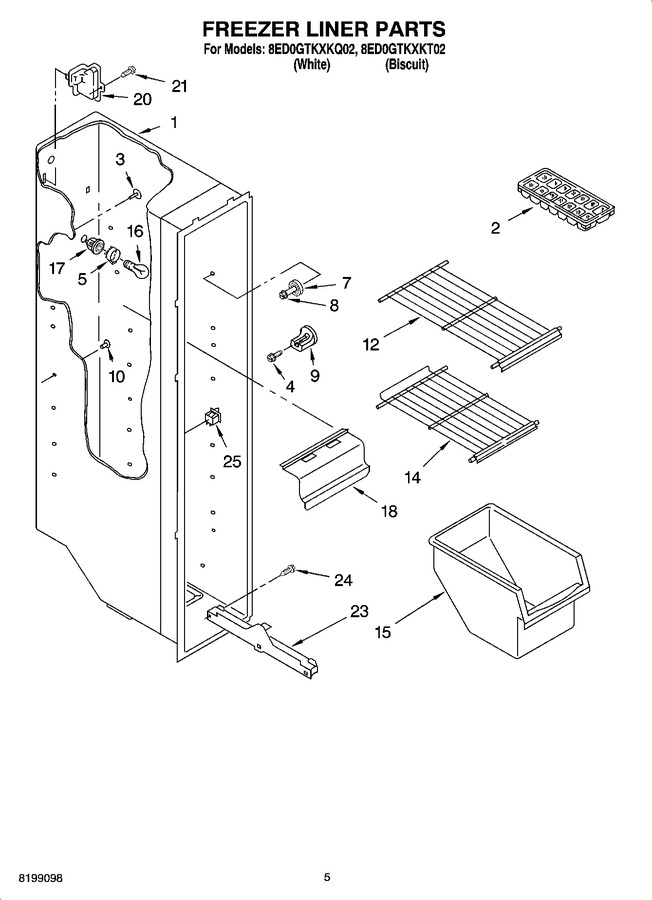

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
4	W10142289		Screw   (Replaces: 3400893)				$ 9.15
5	2167012		Shroud, Light		Appelez-nous	-
7	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
8	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
9	2196207		Stud, Rear				$ 7.61
10	2176134		Grommet (10)				$ 5.83
12	2163612		Shelf		Appelez-nous	-
14	2174269		Shelf (1)		Appelez-nous	-
14	2174270		Shelf (2)		Appelez-nous	-
15	2171707		Freezer Bin		Appelez-nous	-
16	4396822		Light Bulb   (Replaces: 850166)			Immediately	$ 12.93
17	WPW10119935		Socket, Assembly   (Replaces: 2155597)				$ 101.10
18	WP2155595		Light Lens   (Replaces: 2155595)				$ 84.15
20	2160912		Cover, Wiring		Appelez-nous	-
21	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
23	1115383		Slide, Freezer Bin (left Side)		Appelez-nous	-
23	W10845583		Slide, Freezer Bin (right Side)   (Replaces: 1119293)				$ 123.92
24	718257		Screw   (Replaces: 489100)		Appelez-nous	-
25	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23

    View Diagram in Separate Window       Print Part List
