SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Air Flow Parts


05 - Freezer Door Parts


06 - Refrigerator Door Parts

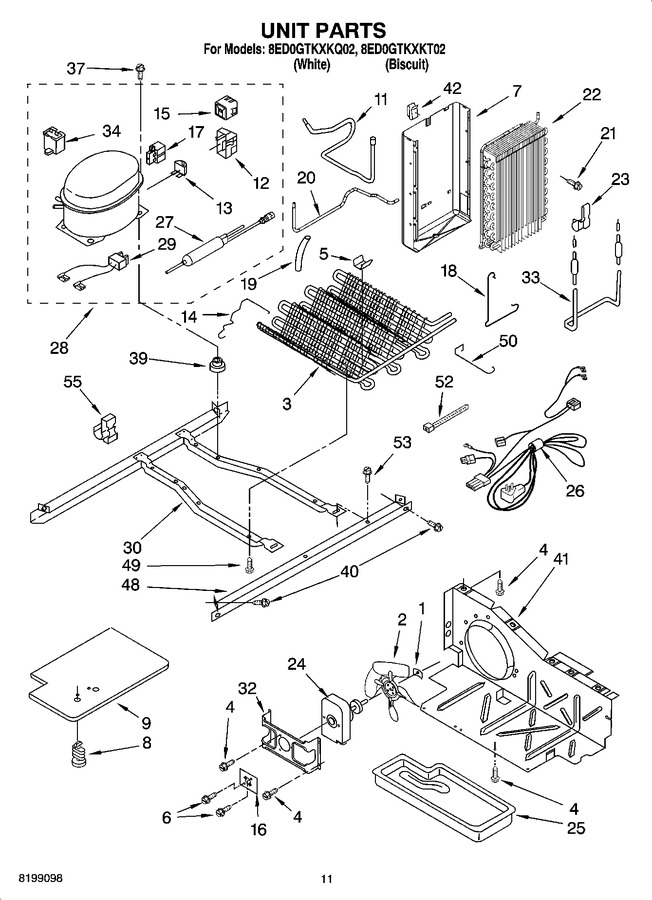

07 - Unit Parts


08 - Control Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	2190685		Fan, Blade				$ 52.00
3	2324712		Condenser Assembly   (Replaces: 2223953)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
6	8281160		Screw		Appelez-nous	-
7	2304288		Heat Shield And Drain Pan		Appelez-nous	-
8	489396		Clip				$ 10.72
9	2182057		Cover, Unit Compartment				$ 72.28
11	2205764		Tube Suction				$ 84.93
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 90.75
13	WP2187145		Overload (service Only)   (Replaces: 2187145)				$ 146.59
14	2223313		Clip, Retaining		Appelez-nous	-
15	2188832		Start-device, Combination (production Alternate Component)		Appelez-nous	-
16	2216997		Insert, Bracket		Appelez-nous	-
17	2183454		Relay (service Only)		Appelez-nous	-
18	2161324		Clip, Defrost Heater		Appelez-nous	-
19	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
20	2261599		Tube, Condenser Heat Loop				$ 232.07
21	WP965173		Screw   (Replaces: 487869)			Immediately	$ 10.72
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
23	W11623163		Clip, Heater (2)   (Replaces: 2304287)		Appelez-nous	-
24	W10124096		Fan, Motor   (Replaces: 2206005)			Immediately	$ 112.20
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2187839		Harness, Unit		Appelez-nous	-
27	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 52.57
27	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
28	W10309990		Compressor (includes Items 12, 13, 17, 27, 29, 34 & 39)   (Replaces: 2212191)			Immediately	$ 632.81
29	WP2172890		Wire, Capacitor (service Only)   (Replaces: 4387765)				$ 8.10
30	2160499		Unit Mounting Frame		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
34	WPW10662129		Capacitor (service Only)   (Replaces: 1118576)			Immediately	$ 58.86
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
40	489340		Screw		Appelez-nous	-
41	2196201		Air Baffle		Appelez-nous	-
42	2155547		Clip, Heat Shield		Appelez-nous	-
48	2149718		Unit Mounting Rail		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	1105612		Guard, Fan				$ 40.58
52	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
55	N/A		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
55	978030		Valve, Access (3/4``)				$ 130.71
55	876764		Valve, Access(3/16``)			Immediately	$ 91.35
55	2208280		Clip, Wire & Tube		Appelez-nous	-
55	978026		Valve, Access (5/16``)			Immediately	$ 128.09
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
