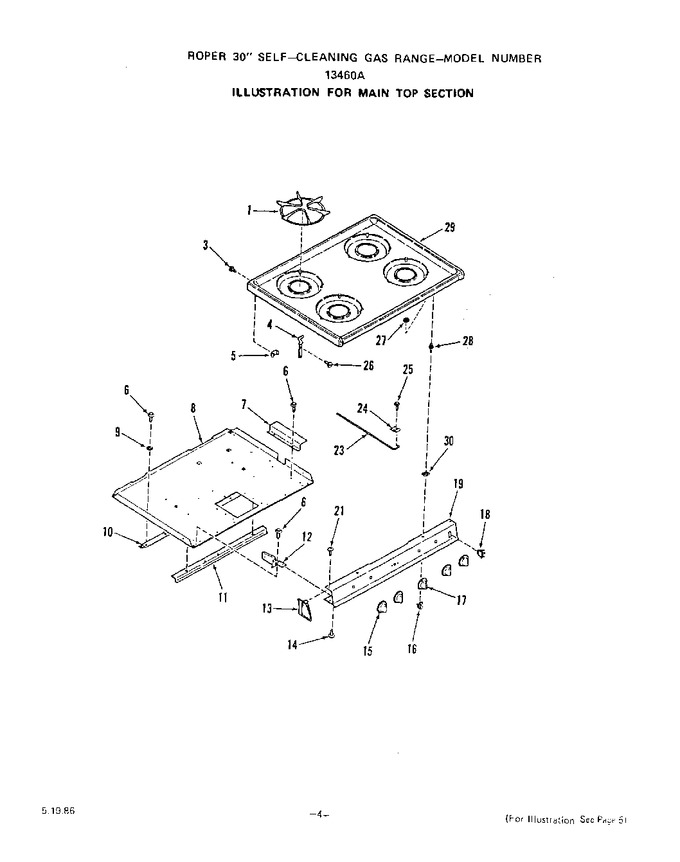

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Req)		Appelez-nous	-
3	316849		Screw-10-32x1/2``		Appelez-nous	-
4	320921		Right		Appelez-nous	-
4	320922		Left		Appelez-nous	-
5	327403		Bracket-main Top Hinge (lt. Or Rt.)		Appelez-nous	-
6	327320		Screw 10-16x7/16``		Appelez-nous	-
7	329841		Raceway		Appelez-nous	-
8	331574		Bottom-burn Box		Appelez-nous	-
9	106462		Washer		Appelez-nous	-
10	329158		Stiffener-burner Box Bottom (rear)		Appelez-nous	-
11	327705		Stiffener-burner Box Bottom (front)		Appelez-nous	-
12	328924		Right		Appelez-nous	-
12	328808		Left		Appelez-nous	-
13	328498		Right		Appelez-nous	-
13	328499		Left		Appelez-nous	-
14	326974		Screw 10bx1/2``		Appelez-nous	-
15	334355		Knob-gas Valve (4 Req)		Appelez-nous	-
16	24667		Catch-main Top Strike (2 Req)		Appelez-nous	-
17	328806		Knob-thermostat		Appelez-nous	-
18	334357		Switch-oven Light		Appelez-nous	-
19	333493		Manifold Panel		Appelez-nous	-
21	327621		Screw 6-20x3/8``		Appelez-nous	-
23	326066		Support Rod-main Top		Appelez-nous	-
24	326348		Clamp		Appelez-nous	-
25	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
26	321162		Screw 10-32 X 3/4``		Appelez-nous	-
27	239764		Keps Nut 8-32		Appelez-nous	-
28	299784		Strike (2 Req)		Appelez-nous	-
29	328911		Almond		Appelez-nous	-
29	328907		White		Appelez-nous	-
30	310218		Washer (2 Req)		Appelez-nous	-
