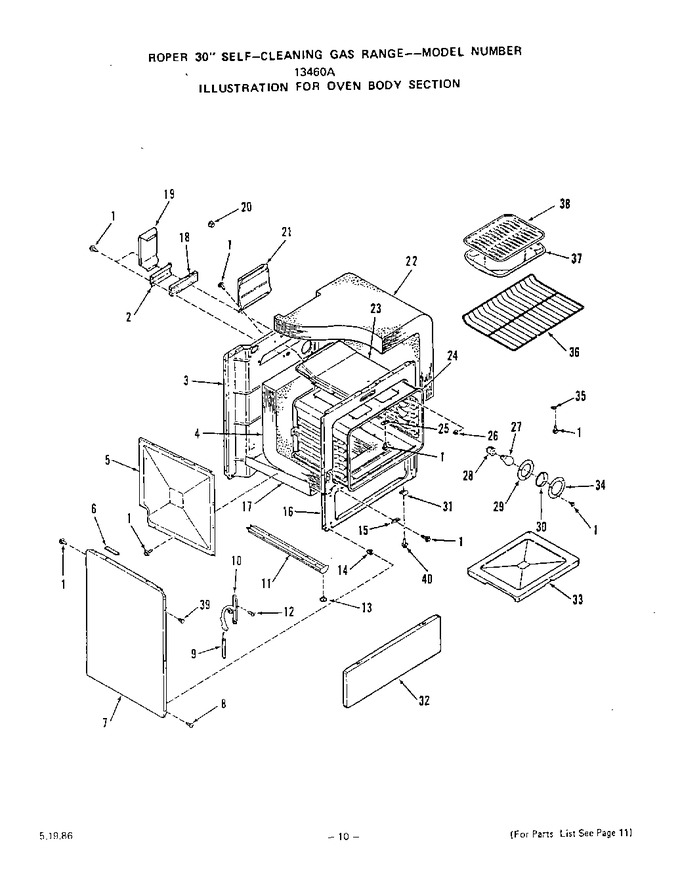

06 - Oven Body


07 - Top Burner


08 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	327809		Wire Shield		Appelez-nous	-
3	330167		Main Back		Appelez-nous	-
4	329146		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
5	328959		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
6	326914		Spacer-main Top (2 Req)		Appelez-nous	-
7	326055		White		Appelez-nous	-
7	326059		Almond		Appelez-nous	-
8	314124		Screw 8abx5/8``		Appelez-nous	-
9	326964		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
10	326012		Right		Appelez-nous	-
10	326013		Left		Appelez-nous	-
11	334811		Base W/levelers-lt. Or Rt.		Appelez-nous	-
12	331704		Screw		Appelez-nous	-
13	326052		Leg Levelers (4 Req)		Appelez-nous	-
14	330031		Expansion Nut Spacer (4 Req)   (Replaces: 312605)			Immediately	$ 19.92
15	331122		Catch-lo Frt Pnl (2 Req)		Appelez-nous	-
16	332680		Front Frame		Appelez-nous	-
17	331144		Lower Insulation Retainer		Appelez-nous	-
18	330166		Insulation		Appelez-nous	-
19	327808		Wire Shield		Appelez-nous	-
20	324257		Bushing		Appelez-nous	-
21	331564		Flue Deflector		Appelez-nous	-
22	329147		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
23	327781		Flue Box		Appelez-nous	-
24	331568		Oven Body		Appelez-nous	-
25	304835		Cover		Appelez-nous	-
26	321539		Clip-thermostat Bulb (2 Req)		Appelez-nous	-
27	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 160.00
28	87883		Holder-oven Lamp Bulb		Appelez-nous	-
29	229371		Gasket-lens		Appelez-nous	-
30	114989		Lens-oven Lamp		Appelez-nous	-
31	331121		Support-lo Frt Pnl (2 Req)		Appelez-nous	-
32	329566		White		Appelez-nous	-
32	329570		Almond		Appelez-nous	-
33	331563		Oven Bottom		Appelez-nous	-
34	229372		Retainer-oven Light Lens		Appelez-nous	-
35	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
36	326068		Oven Rack		Appelez-nous	-
37	331592		Broiler Pan		Appelez-nous	-
38	326297		Broiler Pan Grid		Appelez-nous	-
39	281160		Accordian Rivet (lt. Or Rt.)		Appelez-nous	-
40	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
