SELECT A DIAGRAM

01 - Wire Harness

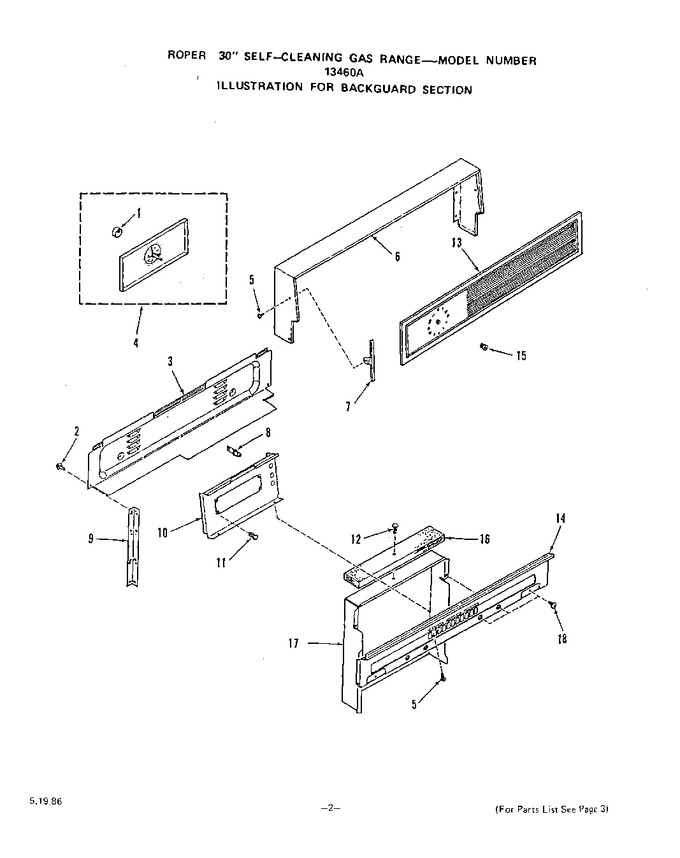

02 - Backguard


03 - Main Top


04 - Power Lock


05 - Broiler And Oven Burner


06 - Oven Body


07 - Top Burner


08 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	283296		Motor-clock		Appelez-nous	-
2	327320		Screw 10-16x7/16``		Appelez-nous	-
3	329352		Wire Cover-backguard		Appelez-nous	-
4	333498		Clock (inc`s. Key 1)		Appelez-nous	-
5	327621		Screw 6-20x3/8``		Appelez-nous	-
6	329345		Frame-backguard		Appelez-nous	-
7	316351		End Trim-backguard Glass (lt. Or Rt.)		Appelez-nous	-
8	296317		Indicator Light-clean		Appelez-nous	-
9	319361		Support-backguard (lt. Or Rt.)		Appelez-nous	-
10	329349		Mounting Bracket-clock		Appelez-nous	-
11	293577		Tubular Clip (4 Req.)		Appelez-nous	-
12	296097		Dart Button		Appelez-nous	-
13	335025		Glass-backguard		Appelez-nous	-
14	331020		Front-backguard Bottom		Appelez-nous	-
15	294810		Knob-clock		Appelez-nous	-
16	329834		Insulation-flue Box		Appelez-nous	-
17	328487		Shield-flue Deflector		Appelez-nous	-
18	326974		Screw 10ab		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
