SELECT A DIAGRAM

01 - Wire Harness


02 - Backguard


03 - Main Top


04 - Power Lock


05 - Broiler And Oven Burner


06 - Oven Body


07 - Top Burner


08 - Oven Door

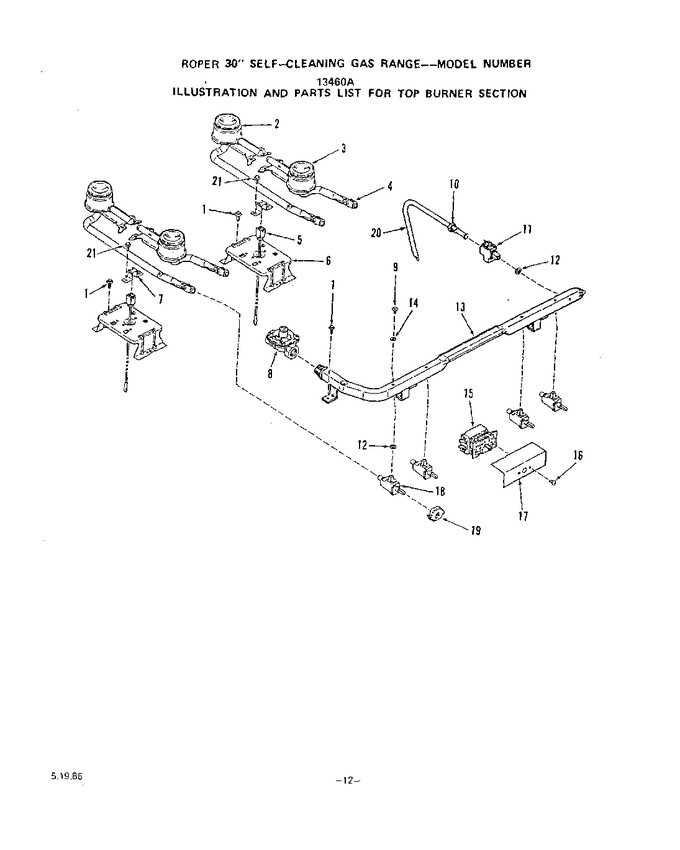

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	327075		Rear Top Burner-rt. Or Lt. (inc`s. Key 4)		Appelez-nous	-
3	327074		Front Top Burner-rt. Or Lt. (inc`s.key 4)		Appelez-nous	-
4	327198		Air Shutter (4 Req)		Appelez-nous	-
5	329464		Left		Appelez-nous	-
5	329462		Right		Appelez-nous	-
6	327073		Support-top Burner (lt. Or Rt.)		Appelez-nous	-
7	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
8	324528		Pressure Regulator		Appelez-nous	-
9	311455		Mounting Screw 1/4-20		Appelez-nous	-
10	113384		Inverted Nut 3/8``		Appelez-nous	-
11	326830		Shut Off Valve		Appelez-nous	-
12	313563		Rubber Gasket		Appelez-nous	-
13	329539		Manifold Pipe		Appelez-nous	-
14	311692		Rubber Gasket		Appelez-nous	-
15	328279		Thermostat-oven		Appelez-nous	-
16	78565		Screw 8-32x3/16``		Appelez-nous	-
17	329839		Shield-thermostat		Appelez-nous	-
18	332001		Gas Valve (4 Req)		Appelez-nous	-
19	312457		Switch-gas Valve (4 Req)		Appelez-nous	-
20	280436		Tubing 3/8`` (shut-off Valve To Control Valve)		Appelez-nous	-
21	97217		Screw 8 - 32x3/8``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
