SELECT A DIAGRAM

1 - Backsplash, Blower & Motor Assembly


2 - Front Panel & Door

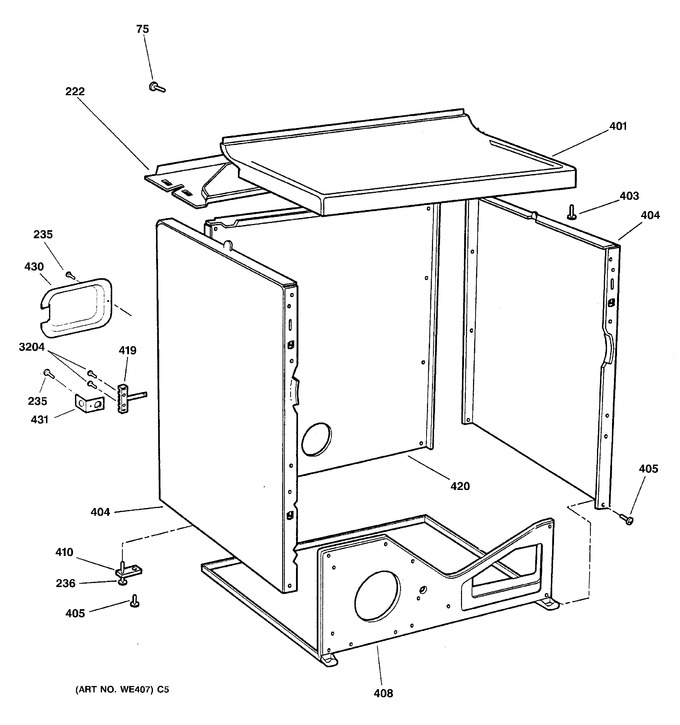

3 - Cabinet


4 - Drum


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
75	WE2M173		Screw		Appelez-nous	-
222	WE20M253		Cover Bottom		Appelez-nous	-
235	WW01A00521		Screw   (Replaces: WE1M280)				$ 3.97
236	WE1M368		Levelling Screw		Appelez-nous	-
401	WE20M306		Top Cover Bq		Appelez-nous	-
403	WE2M0160		Screw		Appelez-nous	-
404	WE20M307		Panel Side Bq		Appelez-nous	-
405	WH2M388		Screw		Appelez-nous	-
408	WE20M304		Cabinet Base		Appelez-nous	-
410	WG04L00183		Brkt Lvl Screw Frnt   (Replaces: WE1M467)				$ 6.09
410	WW02F00139		Brkt Lvl Screw Rear   (Replaces: WE1M468)				$ 21.93
419	WE4M266		Term Block & Grnd Strap		Appelez-nous	-
420	WE20M301		Panel Rear 6 Cu Ft		Appelez-nous	-
430	WE1M458		T-block Cover		Appelez-nous	-
431	WE1M457		Strain Relief Bracket		Appelez-nous	-
3204	WH2M270		Screw		Appelez-nous	-
