1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet

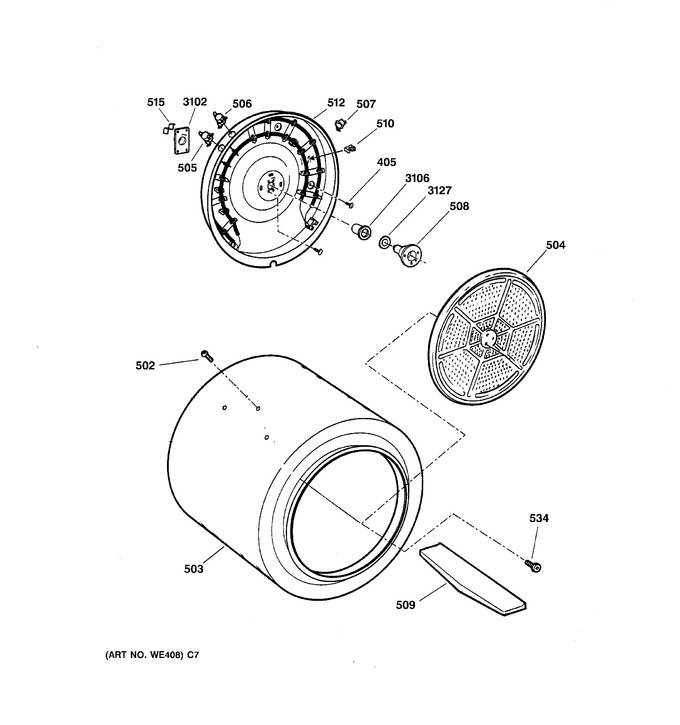

4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 405 | WH2M388 | Screw |
|
- | |||||
| 502 | WW02A00031 | Screw (Replaces: WE2M174) |
|
Immediately | $ 3.97 | ||||
| 503 | WW03F00414 | Drum 6 Cu Ft (Replaces: WE21M14) |
|
$ 169.13 | |||||
| 504 | WW02F00827 | Deflector Heat (Replaces: WE14M77) |
|
$ 74.17 | |||||
| 505 | WE4M160 | Thermostat Safety Left |
|
- | |||||
| 506 | WE4M0181 | Thermostat Ctr Inlet |
|
- | |||||
| 507 | WG04F02270 | Thermostat Hi-limit Smal (Replaces: WE4M137) |
|
Immediately | $ 14.19 | ||||
| 508 | WE25M40 | Shaft Bracket Asm (Replaces: WE3X39) |
|
Immediately | $ 157.05 | ||||
| 509 | WE14M75 | Baffle Drum |
|
- | |||||
| 510 | WG04F05016 | Coil Supports (Replaces: WE1M452) |
|
$ 4.04 | |||||
| 512 | WW02A00049 | Heater Hsng Asm (Replaces: WE11M23) |
|
Immediately | $ 181.15 | ||||
| 515 | WW02F00026 | Ground Strap Asm (Replaces: WE1X1172) |
|
$ 16.28 | |||||
| 534 | WW01A00456 | Screw (Replaces: WE2M163) |
|
Immediately | $ 3.97 | ||||
| 3102 | WG04A00067 | Retainer Bearing (Replaces: WE1M300) |
|
$ 8.14 | |||||
| 3106 | WE1M462 | Sleeve Bearing |
|
$ 38.53 | |||||
| 3127 | WG04F00001 | O-ring Retainer (Replaces: WE1M461) |
|
$ 28.98 |
