SELECT A DIAGRAM

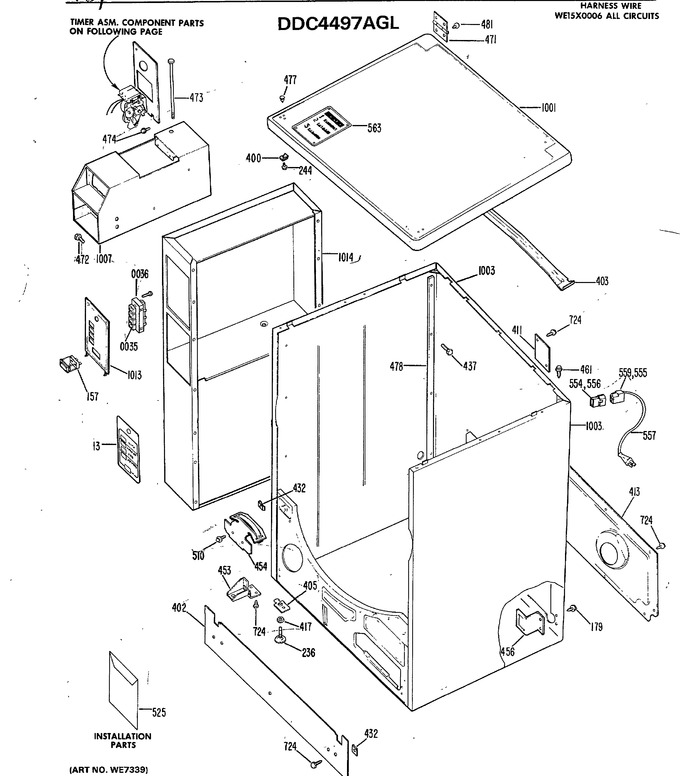

1 - Component Group
2 - Component Group
3 - Drum & Duct Assembly
4 - Cabinet Front Assembly
5 - Timer Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | WE1X977 | Switch Trim Asm |
|
- | |||||
| 35 | WE4X569 | Switch Asm 4 Button |
|
- | |||||
| 36 | WH1X2257 | Button Switch |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 149 | WZ04X0280 | Screw 8-18 Hxw |
|
- | |||||
| 157 | WE1X976 | Lamp Asm |
|
- | |||||
| 177 | WH2X923 | Nut Clip |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 185 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 229 | WH12X183 | Housing Receptacle |
|
- | |||||
| 236 | WG04L00345 | Scr 5/16-24 Lvl 2 S (Replaces: WE2X229) |
|
Immediately | $ 4.04 | ||||
| 243 | WZ05X0155 | Scr 8-18 Ab Hx 3/8 Ss |
|
- | |||||
| 244 | WE2X235 | Screw Tri-wing |
|
- | |||||
| 245 | WE1X1055 | Shield-wire |
|
- | |||||
| 247 | WW02F00871 | Bearing (Replaces: WE1X759) |
|
Immediately | $ 5.96 | ||||
| 400 | WE2X134 | Clip |
|
- | |||||
| 403 | WE14X37 | Brace Cabinet Top |
|
- | |||||
| 404 | WE1X425 | Plate |
|
- | |||||
| 405 | WE1X468 | Plate Leveling Screw |
|
- | |||||
| 411 | WE1X426 | Wrapper Cabinet Knockout |
|
- | |||||
| 413 | WE14X66 | Box Recess |
|
- | |||||
| 417 | WZ07X0038 | Nut |
|
- | |||||
| 418 | WZ07X0031 | Nut |
|
- | |||||
| 432 | WL02X0071 | Nut |
|
- | |||||
| 437 | WZ02X0514 | Scr 1/4-20 M Hx 13/16 S |
|
- | |||||
| 453 | WE13X104 | Bracket Level Scr Supt |
|
- | |||||
| 454 | WE25X60 | Slide Asm |
|
$ 15.15 | |||||
| 456 | WE1X617 | Clamp-pipe |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 473 | WE2X283 | Scr 5/16-18 Cap Hx 8 S |
|
- | |||||
| 474 | 10-32X1/2 | Screw 8-32 X 3/8 Fillstr |
|
- | |||||
| 477 | WE1X966 | Plug |
|
- | |||||
| 478 | WE1X965 | Cabinet Strap Asm |
|
- | |||||
| 481 | WH2X967 | Scr 12-14 Ab Hxw 1/2 S |
|
- | |||||
| 510 | WE2X263 | Screw 10-16x1/2 Hxw |
|
- | |||||
| 525 | WE25X143 | Pk Pack Asm Installation |
|
- | |||||
| 548 | WB17X151 | Terminal |
|
- | |||||
| 549 | WB17X145 | Terminal For Wb17x0147 |
|
- | |||||
| 555 | WB17X5053 | Terminal |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WE8X31 | Cordset Asm |
|
- | |||||
| 559 | WH12X538 | Housing Terminal |
|
- | |||||
| 562 | WB17X5054 | Terminal |
|
- | |||||
| 563 | WE1X975 | Pm Instruction Plate Asm |
|
- | |||||
| 611 | WH12X416 | Housing Terminal |
|
- | |||||
| 724 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 1001 | WE20X608 | Weld Asm Cover Ad |
|
- | |||||
| 1001 | WE20X609 | Weld Asm Cover Ha |
|
- | |||||
| 1001 | WE20X610 | Weld Asm Cover Wh |
|
- | |||||
| 1003 | WE20X670 | Cabinet Asm Ad |
|
- | |||||
| 1003 | WE20X672 | Cabinet Asm Wh |
|
- | |||||
| 1003 | WE20X671 | Cabinet Asm Ha |
|
- | |||||
| 1007 | WE20X657 | Meter Case Painted Ha |
|
- | |||||
| 1007 | WE20X656 | Meter Case Painted Ad |
|
- | |||||
| 1007 | WE20X658 | Meter Case Painted Wh |
|
- | |||||
| 1013 | WE10X264 | Door Asm Painted Ha |
|
- | |||||
| 1013 | WE10X265 | Door Asm Painted Wh |
|
- | |||||
| 1013 | WE10X263 | Door Asm Painted Ad |
|
- | |||||
| 1014 | WE20X600 | Housing Asm Painted Ad |
|
- | |||||
| 1014 | WE20X604 | Housing Asm Painted Wh |
|
- | |||||
| 1014 | WE20X602 | Housing Asm Painted Ha |
|
- |
