SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Drum & Duct Assembly


4 - Cabinet Front Assembly


5 - Timer Assembly

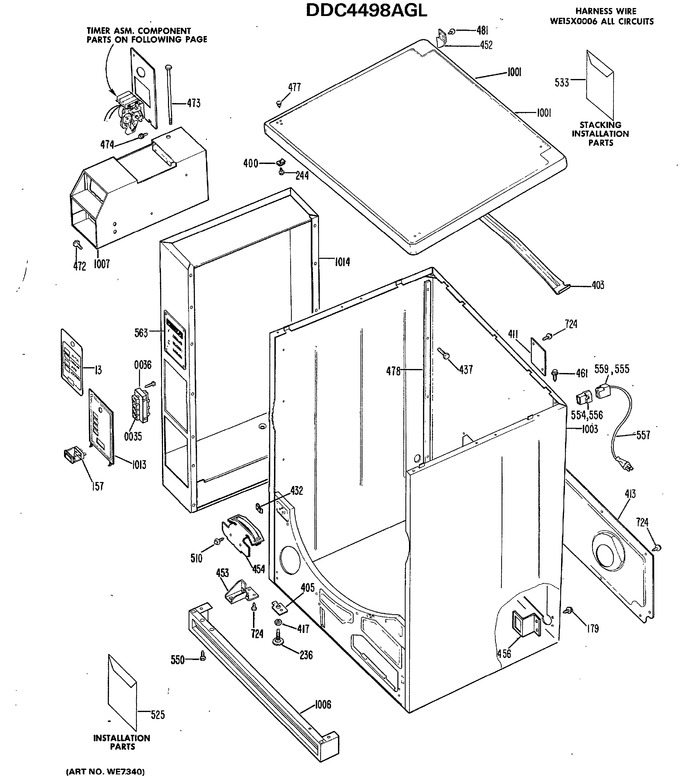

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	WE1X977		Switch Trim Asm		Appelez-nous	-
35	WE4X569		Switch Asm 4 Button		Appelez-nous	-
36	WH1X2257		Button Switch		Appelez-nous	-
157	WE1X976		Lamp Asm		Appelez-nous	-
179	WZ04X0288		Scr 10-16 Bt Hxw 1/2 S		Appelez-nous	-
236	WG04L00345		Scr 5/16-24x2 Lvl 3/16 S   (Replaces: WE2X229)			Immediately	$ 4.04
244	WE2X235		Screw Tri-wing		Appelez-nous	-
400	WE2X134		Clip		Appelez-nous	-
403	WE14X37		Brace Cabinet Top		Appelez-nous	-
405	WE1X468		Plate Leveling Screw		Appelez-nous	-
411	WE1X426		Knockout Cabinet Wrapper		Appelez-nous	-
413	WE14X66		Box Recess		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
432	WL02X0071		Nut Clip		Appelez-nous	-
437	WZ02X0514		Scr 1/4-20 M Hx 3/4 S		Appelez-nous	-
452	WH16X431		Bracket Hinge		Appelez-nous	-
453	WE13X104		Bracket Level Scr Supt		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
456	WE1X617		Clamp Pipe		Appelez-nous	-
461	WZ05X0158		Scr 8-32 D Hxw 3/8 S		Appelez-nous	-
473	WE2X283		Scr 5/16-18 Cap Hx 8 S		Appelez-nous	-
474	10-32X1/2		Scr 10-32 M Hx 1/2 S		Appelez-nous	-
477	WE1X966		Plug		Appelez-nous	-
478	WE1X965		Cabinet Strap Asm		Appelez-nous	-
481	WH2X967		Scr 12-14 Ab Hxw 1/2 S		Appelez-nous	-
510	WE2X263		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
525	WE25X143		Pk Pack Asm Installation		Appelez-nous	-
533	WE25X144		Parts Pack-stack Dryer		Appelez-nous	-
550	WE2X281		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
555	WB17X5053		Terminal		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WE8X31		Cord Power Asm		Appelez-nous	-
559	WH12X538		Housing Terminal		Appelez-nous	-
563	WE1X975		Instruction Plate Asm		Appelez-nous	-
724	WZ04X0288		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
1001	WE20X608		Weld Asm Cover Ad		Appelez-nous	-
1001	WE20X609		Weld Asm Cover Ha		Appelez-nous	-
1001	WE20X610		Weld Asm Cover Wh		Appelez-nous	-
1003	WE20X670		Cabinet Asm Ad		Appelez-nous	-
1003	WE20X672		Cabinet Asm Wh		Appelez-nous	-
1003	WE20X671		Cabinet Asm Ha		Appelez-nous	-
1006	WE20X613		Panel Asm Painted Wh		Appelez-nous	-
1006	WE20X611		Panel Asm Painted Ad		Appelez-nous	-
1006	WE20X612		Panel Asm Painted Ha		Appelez-nous	-
1007	WE20X656		Meter Case Painted Ad		Appelez-nous	-
1007	WE20X657		Meter Case Painted Ha		Appelez-nous	-
1007	WE20X658		Meter Case Painted Wh		Appelez-nous	-
1013	WE10X264		Door Asm Painted Ha		Appelez-nous	-
1013	WE10X265		Door Asm Painted Wh		Appelez-nous	-
1013	WE10X263		Door Asm Painted Ad		Appelez-nous	-
1014	WE20X600		Housing Asm Painted Ad		Appelez-nous	-
1014	WE20X602		Housing Asm Painted Ha		Appelez-nous	-
1014	WE20X604		Housing Asm Painted Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
