SELECT A DIAGRAM

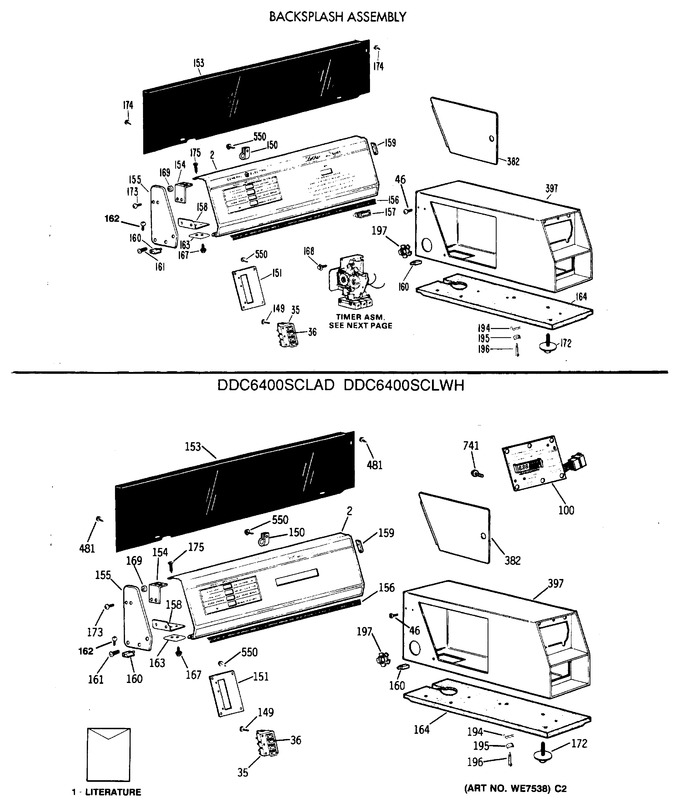

1 - Backsplash Assembly
2 - Blower & Drive Assembly
3 - Gas Valve & Burner Assembly
4 - Component Group
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1728 | Install Instructions |
|
- | |||||
| 1 | 49-9644 | Pm Manual Use & Care |
|
- | |||||
| 1 | 31-2712-23 | Mini Manual |
|
- | |||||
| 2 | WE19X911 | Housing Asm Control |
|
- | |||||
| 35 | WE4X707 | Switch Asm 4 Button |
|
- | |||||
| 36 | WH1X2562 | Button Switch |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 149 | WZ04X0280 | Screw 8-18 Hxw |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 151 | WE13X133 | Bracket Switch |
|
- | |||||
| 153 | WH46X263 | Panel Rear |
|
- | |||||
| 154 | WE1X913 | Bracket Mounting |
|
- | |||||
| 155 | WE1X948 | Trim End |
|
- | |||||
| 156 | WE1X949 | Gasket Control Hsg |
|
- | |||||
| 157 | WG04F07410 | Lamp Asm-amber (Replaces: WE1X950) |
|
$ 10.81 | |||||
| 158 | WE1X951 | Gusset |
|
- | |||||
| 159 | WE1X952 | Support Housing |
|
- | |||||
| 160 | WE1X953 | Block Pivot |
|
- | |||||
| 161 | WE2X273 | Scr 10-14 Pt Sh 7/16 S |
|
- | |||||
| 162 | WE2X274 | Scr 8-16 Pt Hxw 3/8 S |
|
- | |||||
| 163 | WE9X48 | Gasket |
|
- | |||||
| 164 | WH8X371 | Gasket Coin Box |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 168 | WZ02X0468 | Scr 10-32 M Hs 1/8 S |
|
- | |||||
| 169 | WH1X2194 | Tube Plug |
|
- | |||||
| 172 | WH2X735 | Scr 1/4-20 M Sh .900 Cs |
|
- | |||||
| 173 | WH2X932 | Scr 8-32 Tt Sh 1/2 S |
|
- | |||||
| 174 | WH2X934 | Scr 12-14 Ab Sh 1/2 S |
|
- | |||||
| 175 | WH2X933 | Scr 8-16 Plt T Pa 1/2 S |
|
- | |||||
| 194 | WH1X1728 | Clip |
|
- | |||||
| 195 | WH2X885D | Nut (Replaces: WH2X885) |
|
- | |||||
| 196 | WH2X783 | Stud Hold Down |
|
- | |||||
| 197 | WE1X956 | Bushing |
|
- | |||||
| 234 | WE2X154 | Palnut |
|
$ 55.13 | |||||
| 276 | WE4X829 | Thermostat Asm |
|
- | |||||
| 323 | WE1X1187 | Bushing |
|
- | |||||
| 382 | WH42X2317 | Door, Mtr Case Acc. Wh |
|
- | |||||
| 397 | WH42X2319 | Meter, Painted Case Wh |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 |
|
- | |||||
| 481 | WH2X967 | Scr 12-14 Ab Hxw 1/2 S |
|
- | |||||
| 550 | WE2X281 | Scr 8-15 Hx 3/8 S |
|
- | |||||
| 620 | WE2X252 | Washer |
|
- | |||||
| 679 | WZ05X0155 | Scr 8-18 Ab Hx 3/8 Ss |
|
- | |||||
| 718 | WZ04X0220 | Scr 6-20 Ab Hxw 1/2 S |
|
- | |||||
| 942 | WD1X1395 | Terminal Pin & Socket |
|
- | |||||
| 1458 | WB17X145 | Terminal For Wb17x0147 |
|
- |
