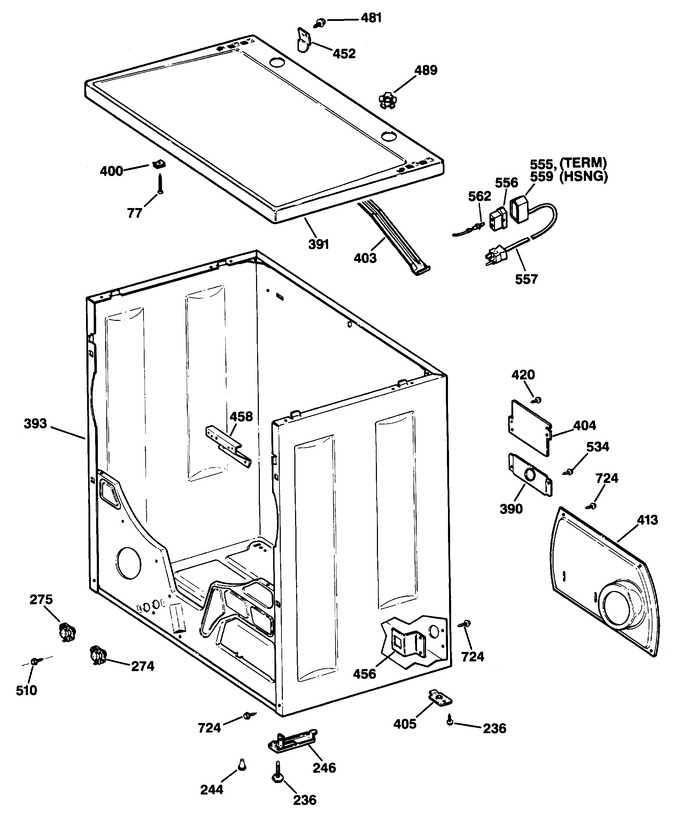

1 - Backsplash Assembly
2 - Blower & Drive Assembly
3 - Gas Valve & Burner Assembly
4 - Component Group
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 77 | WE2X377 | Scr 8-18 Ab Ovp 1.75 S |
|
- | |||||
| 236 | WG04L00345 | Screw Levelling 5/16-24 (Replaces: WE2X355) |
|
Immediately | $ 4.04 | ||||
| 244 | WE1X1200 | Grommet Lev Leg |
|
- | |||||
| 246 | WE1X1190 | Foot Leveling |
|
- | |||||
| 274 | WE4X819 | Thermostat, Low Control |
|
- | |||||
| 275 | WE4X869 | Thermostat Asm |
|
- | |||||
| 390 | WE1X1175 | Plate |
|
- | |||||
| 391 | WE20X791 | Cover, Weld Asm Wh |
|
- | |||||
| 393 | WE20X774 | Base & Wrapper Asm Wh |
|
- | |||||
| 400 | WE2X134 | Clip |
|
- | |||||
| 403 | WE14X37 | Brace Cabinet Top |
|
- | |||||
| 404 | WE1X425 | Plate |
|
- | |||||
| 405 | WE1X468 | Plate Leveling Screw |
|
- | |||||
| 413 | WE14X212 | Panel Access |
|
- | |||||
| 420 | WH2X893 | Scr 10-16 Hx 3/8 S |
|
- | |||||
| 452 | WE1X1094 | Bracket Hinge |
|
- | |||||
| 456 | WE1X617 | Pipe Clamp |
|
- | |||||
| 458 | WE1X411 | Bracket Terminal Board |
|
- | |||||
| 481 | WH2X967 | Scr 12-14 Ab Hxw 1/2 S |
|
- | |||||
| 489 | WH1X2572 | Sleeve Split |
|
- | |||||
| 510 | WE2X263 | Screw 10-16x1/2 Hxw |
|
- | |||||
| 534 | WE2X153 | Screw |
|
- | |||||
| 555 | WB17X5053 | Terminal |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WE8X31 | Cordset Asm |
|
- | |||||
| 559 | WH12X538 | Housing Terminal |
|
- | |||||
| 562 | WB17X5054 | Terminal |
|
- | |||||
| 724 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- |
