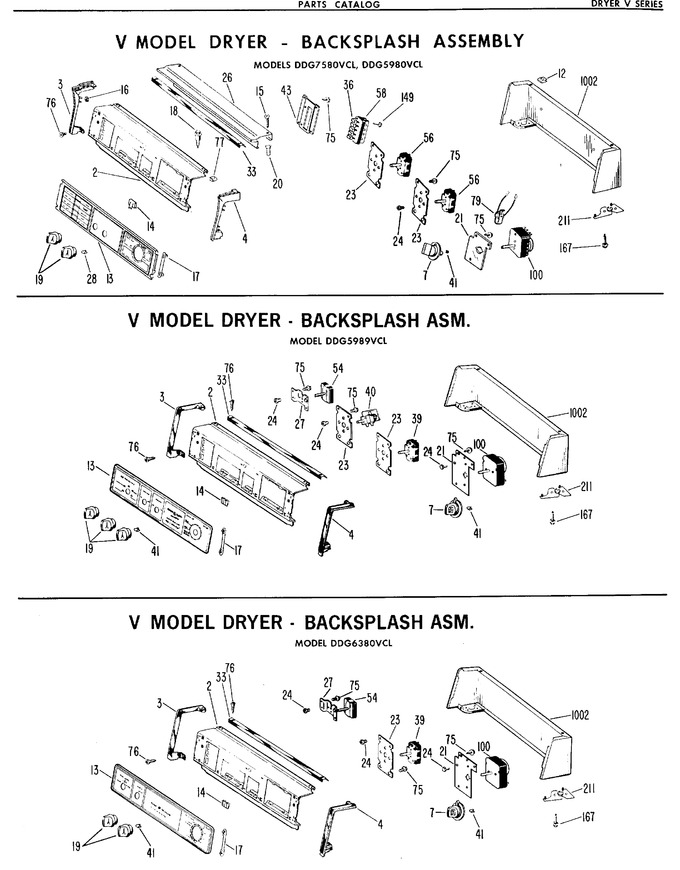

1 - V Model Dryer - Backsplash Assembly


2 - Backsplash Assembly


3 - Cabinet Asm. (gas)


4 - Drum & Duct Assembly (gas)


5 - Cabinet Front Assembly (gas)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X974		Trim-end L.h.		Appelez-nous	-
4	WH42X975		Trim-end R.h.		Appelez-nous	-
7	WE1X963		Knob Asm-timer		Appelez-nous	-
13	WE19X727		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Grounding		Appelez-nous	-
17	WE1X577		Clip Trim		Appelez-nous	-
19	WH1X2277		Knob-clip As		Appelez-nous	-
21	WE13X76		Plate Control		Appelez-nous	-
23	WH16X401		Bracket Switch		Appelez-nous	-
24	WZ02X0510		Screw		Appelez-nous	-
27	WH16X402		Bracket Switch		Appelez-nous	-
33	WE19X310		Trim Rear		Appelez-nous	-
36	WE4X464		Switch-selector		Appelez-nous	-
39	WE4X463		Switch-safety Start		Appelez-nous	-
41	WE1X5201		Clip Knob		Appelez-nous	-
75	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
76	WZ05X0120		Screw		Appelez-nous	-
100	WE4X520		Timer Asm		Appelez-nous	-
167	WE2X186		Screw		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
406	WZ04X0236		Scr		Appelez-nous	-
1002	WH46X215		Weld Asm-housing Ha		Appelez-nous	-
1002	WH46X212		Weld Asm-housing Ad		Appelez-nous	-
1002	WH46X213		Weld Asm-housing Cf		Appelez-nous	-
1002	WH46X214		Weld Asm-housing Fa		Appelez-nous	-
1002	WH46X211		Weld Asm-housing Wh		Appelez-nous	-
9999	49-9240		Instruction Sheet		Appelez-nous	-
9999	49-9332		Use - Care Book		Appelez-nous	-
9999	49-9035		Installation Instr		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
