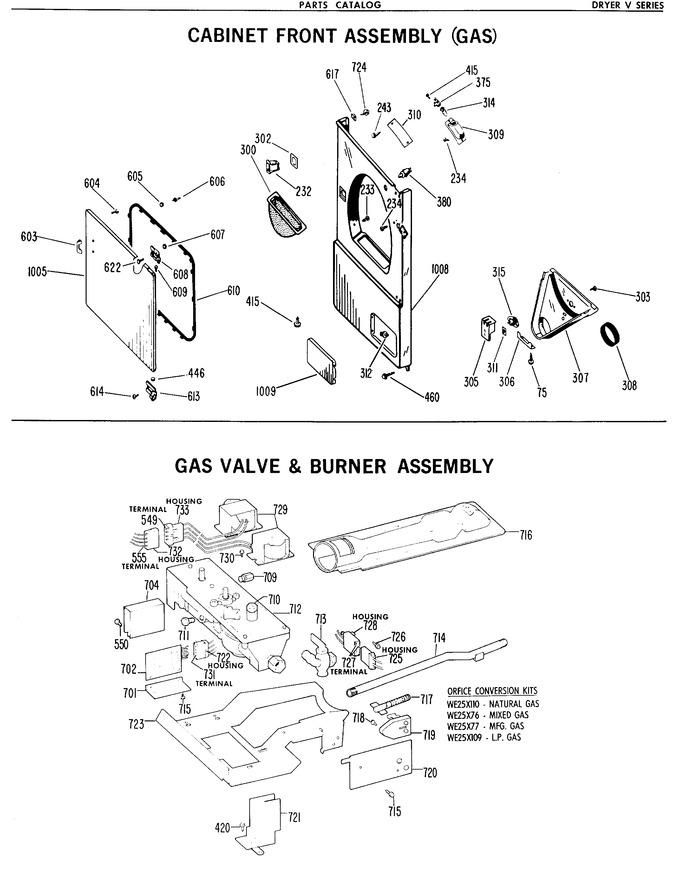

1 - V Model Dryer - Backsplash Assembly


2 - Backsplash Assembly


3 - Cabinet Asm. (gas)


4 - Drum & Duct Assembly (gas)


5 - Cabinet Front Assembly (gas)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
75	WG04A00781		Screw 10-15 X 3/8 Hex   (Replaces: WH2X930)			Immediately	$ 3.97
232	5366021400		Latch   (Replaces: WE1X903)			Immediately	$ 62.21
233	WZ04X0236		Screw 8-15 X 1/2 Oval		Appelez-nous	-
234	WE2X154		Nut-sheet Metal				$ 55.13
243	WZ05X0155		Screw 8-15 X 3/8 Truss		Appelez-nous	-
300	WG04F00431		Filter Asm-lint   (Replaces: WE18X26)			Immediately	$ 26.73
302	WE1X888		Plate-latch		Appelez-nous	-
303	WE2X270		Screw 8-15 X 1/2 Truss		Appelez-nous	-
305	WE1X944		Cover-thermostat		Appelez-nous	-
306	WE1X409		Clamp		Appelez-nous	-
307	WE14X117		Duct-trap		Appelez-nous	-
308	WE9X38		Seal Asm-felt				$ 58.83
310	WE1X446		Plate-closure		Appelez-nous	-
311	WE2X192		Clip		Appelez-nous	-
312	WE2X191		Rivet		Appelez-nous	-
315	WE4X551		Thermostat L140-32		Appelez-nous	-
380	WE4X1197		Switch Asm-push Button		Appelez-nous	-
420	WH2X893		Screw 10-16 X 3/8 Hex		Appelez-nous	-
446	WE2X279		Washer-flat		Appelez-nous	-
460	WZ04X0264		Screw 10-16 X 7/8 Hex		Appelez-nous	-
549	WB17X5054		Terminal		Appelez-nous	-
550	WE2X281		Screw 8-18 X 3/8 Hex		Appelez-nous	-
555	WB17X5053		Terminal		Appelez-nous	-
603	WE1X257		Handle-door		Appelez-nous	-
604	WE2X227		Screw 10-24 X 13/16 Trus		Appelez-nous	-
605	WZ10X0016		Washer-flat		Appelez-nous	-
606	WE1X890		Strike		Appelez-nous	-
607	WE2X110		Nut-sheet Metal K		Appelez-nous	-
608	WE1X345		Bracket Asm-hinge		Appelez-nous	-
609	WE1X404		Bushing-hinge		Appelez-nous	-
610	WE9X28		Gasket-door		Appelez-nous	-
613	WE1X344		Bracket Asm-hinge		Appelez-nous	-
614	WZ04X0257		Screw 10-32 X 3/8 Pan		Appelez-nous	-
617	WH2X782		Nut Clip		Appelez-nous	-
622	WE2X177		Screw 10-32 X 1/2 Round		Appelez-nous	-
701	WE13X136		Bracket-pc Board		Appelez-nous	-
702	WE4X580		Board Asm-circuit		Appelez-nous	-
704	WE1X969		Shield-pc Board		Appelez-nous	-
709	WE4X968		Orifice-main		Appelez-nous	-
710	WE1X606		Leak Limiter		Appelez-nous	-
712	WE14X142		Valve Asm		Appelez-nous	-
713	WE1X758		Valve Asm-shutoff		Appelez-nous	-
714	WE1X804		Pipe & Lug Asm		Appelez-nous	-
715	WD2X5063		Screw 8-18 X 13/32 Hex		Appelez-nous	-
716	WE1X967		Burner Asm		Appelez-nous	-
717	SDEUNIV		Igniter   (Replaces: WE4X444)			Immediately	$ 81.97
718	WZ04X0220		Screw 6-20 X 1/2 Hex		Appelez-nous	-
719	WE1X941		Spring Asm		Appelez-nous	-
720	WE13X116		Bracket-igniter		Appelez-nous	-
721	WE13X9118		Bracket-spacer		Appelez-nous	-
722	WE1X973		Housing		Appelez-nous	-
723	WE13X135		Bracket-valve		Appelez-nous	-
724	WZ04X0288		Screw 10-16 X 1/2 Hex		Appelez-nous	-
725	WH12X237		Housing-terminal		Appelez-nous	-
726	6-32X3/8		Screw 6-32 X 3/8 Hex		Appelez-nous	-
727	WH1X1719		Terminal		Appelez-nous	-
728	WH12X242		Housing-terminal		Appelez-nous	-
729	WE4X581		Coil Asm		Appelez-nous	-
730	8-32X5/8		Screw (gas Value Asm)		Appelez-nous	-
731	WE1X974		Terminal		Appelez-nous	-
732	WE1X972		Housing-terminal		Appelez-nous	-
733	WE1X970		Housing-terminal		Appelez-nous	-
1005	WE10X258		Door Asm Wh		Appelez-nous	-
1005	WE10X259		Door Asm Fa		Appelez-nous	-
1005	WE10X260		Door Asm Ha		Appelez-nous	-
1005	WE10X261		Door Asm Cf		Appelez-nous	-
1005	WE10X262		Door Asm Ad		Appelez-nous	-
1008	WE20X569		Weld Asm-cab Front Cf		Appelez-nous	-
1008	WE20X568		Weld Asm-cab Front Ha		Appelez-nous	-
1008	WE20X567		Weld Asm-cab Front Fa		Appelez-nous	-
1008	WE20X500		Weld Asm-cab Front Wh		Appelez-nous	-
1008	WE20X570		Weld Asm-cab Front Ad		Appelez-nous	-
1009	WE10X254		Door-access Ha		Appelez-nous	-
1009	WE10X205		Door-access Wh		Appelez-nous	-
1009	WE10X255		Door-access Cf		Appelez-nous	-
1009	WE10X253		Door-access Fa		Appelez-nous	-
1009	WE10X256		Door-access Ad		Appelez-nous	-
