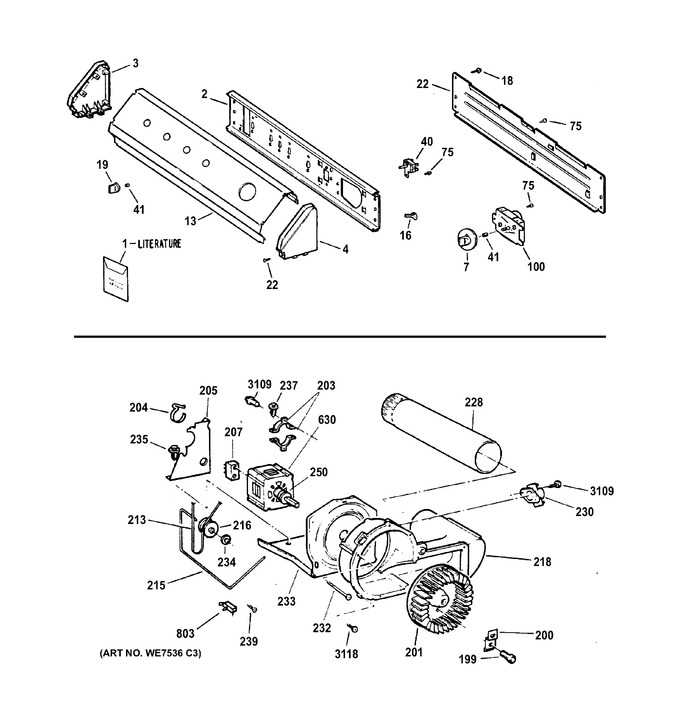

1 - Backsplash, Blower & Drive Assembly
2 - Front Panel & Door
3 - Cabine & Top Panel
4 - Drum
5 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1734 | Installations Instructio |
|
- | |||||
| 1 | 31-2559 | Mini-manual Sheet 559 |
|
- | |||||
| 2 | WH46X330 | Plate, Mounting |
|
- | |||||
| 4 | WH42X2282 | End Cap R H Almond |
|
- | |||||
| 7 | WE1X1204 | Knob Assy Timer |
|
- | |||||
| 13 | WE19M863 | Switch Trim Asm, Ad |
|
- | |||||
| 16 | WH2X1151 | Clip Ground |
|
- | |||||
| 18 | WH2X1152 | Screw 8-16x5/8 Hx |
|
- | |||||
| 19 | WE1X1208 | Knob & Clip Asm Ad |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 75 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 100 | WE4X795 | Timer |
|
$ 157.50 | |||||
| 199 | WE2X280 | Screw 14-10 A Hx S |
|
- | |||||
| 200 | WG04A01065 | Clamp (Replaces: WE1X688) |
|
$ 73.76 | |||||
| 201 | WW02A00073 | Wheel Blower (Replaces: WE16X17) |
|
Immediately | $ 64.24 | ||||
| 203 | WE13X182 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Motor Bracket |
|
- | |||||
| 205 | WE13M22 | Motor Support |
|
- | |||||
| 207 | WW02F00346 | Switch-start Form J Mtr. (Replaces: WE4X710) |
|
Immediately | $ 112.18 | ||||
| 213 | WG03F00846 | Belt Drive (Replaces: WE12X82) |
|
Immediately | $ 52.50 | ||||
| 215 | WW02A00060 | Spring Idler (Replaces: WE3M17) |
|
$ 12.60 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.96 | ||||
| 218 | WE14M78 | Housing Blower |
|
- | |||||
| 228 | WW02L00148 | Elbow Exhaust (Replaces: WE14M90) |
|
$ 15.58 | |||||
| 230 | WE4M156 | Thermostat (poly) |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M156) |
|
$ 3.97 | |||||
| 233 | WE13M65 | Plate Motor |
|
- | |||||
| 233 | WE13M25 | No Item Description |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 10.12 | |||||
| 235 | WE2M307 | Scr 10-16 X 1/2 Ab |
|
- | |||||
| 237 | WE2M148 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 630 | WG04F00726 | Motor Asm (Replaces: WE17X32) |
|
Immediately | $ 290.62 | ||||
| 803 | WW02F00249 | Interlock Sw (Replaces: WD21X557) |
|
Immediately | $ 17.47 | ||||
| 3109 | WE2M154 | Screw |
|
- | |||||
| 3118 | WH2M342 | Screw |
|
- |
