1 - Backsplash, Blower & Drive Assembly

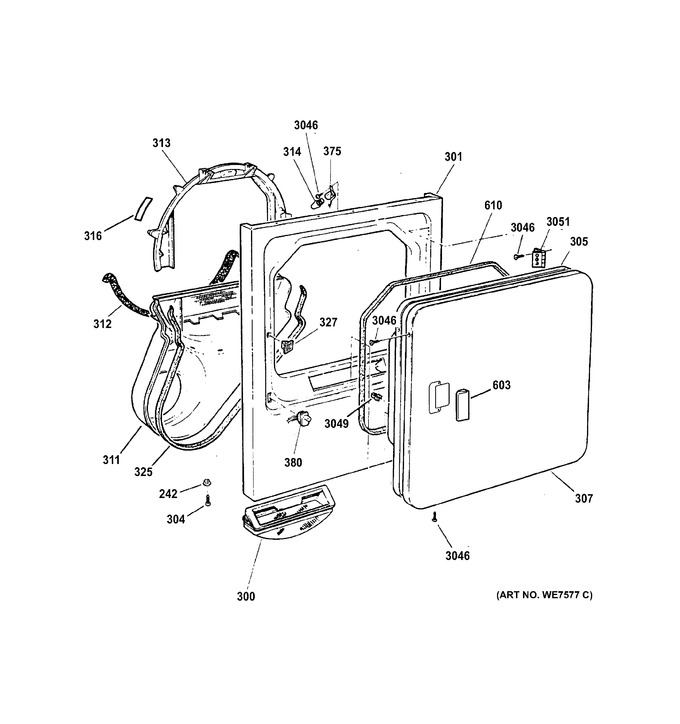

2 - Front Panel & Door
3 - Cabine & Top Panel
4 - Drum
5 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 242 | WZ07X0038 | Nut |
|
- | |||||
| 300 | WE18M18 | Lint Trap |
|
- | |||||
| 301 | WE20M248 | Front Cabinet Wh |
|
- | |||||
| 304 | WE1M311 | Leveling Screw |
|
- | |||||
| 305 | WG04L00267 | Panel Door Inner Wh (Replaces: WE10M92) |
|
$ 122.60 | |||||
| 307 | WE10M90 | Panel Outer Wh |
|
- | |||||
| 311 | WE14M72 | Duct Air |
|
- | |||||
| 312 | WE9M10 | Felt |
|
- | |||||
| 313 | WE3M19 | Bearing Drum |
|
- | |||||
| 314 | WE1M323 | Lamp |
|
- | |||||
| 316 | WW02A00129 | No Item Description (Replaces: WE1M316) |
|
Immediately | $ 15.72 | ||||
| 316 | WG04L00096 | Slide Drum (wh) (Replaces: WE1M333) |
|
Immediately | $ 3.57 | ||||
| 325 | WE1M376 | Gasket |
|
$ 26.89 | |||||
| 327 | 5366021400 | Latch (Replaces: WE1X903) |
|
Immediately | $ 55.99 | ||||
| 375 | WE5M4 | Socket Asm |
|
- | |||||
| 380 | W10169313 | No Item Description (Replaces: WE4M157) |
|
Immediately | $ 31.72 | ||||
| 610 | WG01L00271 | Gasket Door (Replaces: WE9M13) |
|
$ 15.27 | |||||
| 3046 | WW02A00097 | Screw (Replaces: WE2M153) |
|
$ 3.57 | |||||
| 3049 | 5366021400 | Strike (Replaces: WE1M314) |
|
Immediately | $ 55.99 | ||||
| 3051 | WE1M315 | Hinge Door |
|
- |
