View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

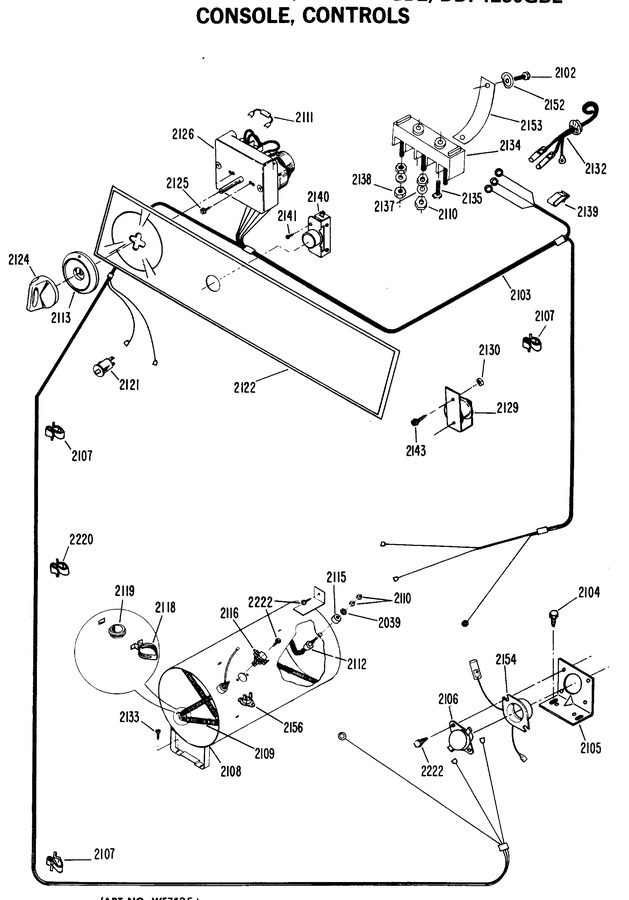

1 - Console, Controls
2 - Drum, Motor, Blower
3 - Cabinet Components
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2039 | WH2X985 | Lockwasher |
|
- | |||||
| 2103 | WE15X20 | Wiring Harness |
|
- | |||||
| 2103 | WE15X21 | Wiring Harness |
|
- | |||||
| 2105 | WE1X988 | Bracket Control Thermo |
|
- | |||||
| 2106 | WE4X670 | Control Thermostat |
|
- | |||||
| 2107 | WH2X989 | Clip Harness |
|
- | |||||
| 2108 | WE11X87 | Hsng Heater |
|
- | |||||
| 2109 | WE11X71 | Element Heat 240 V |
|
- | |||||
| 2110 | WZ07X0031 | Nut |
|
- | |||||
| 2111 | WE4X673 | Resistor (4.7k Ohms) |
|
- | |||||
| 2111 | WE4X638 | Resistor (4.4k Ohms) |
|
- | |||||
| 2111 | WE4X674 | Resistor (3.3k Ohms) |
|
- | |||||
| 2112 | WE2X288 | Male Bushing |
|
- | |||||
| 2113 | WE1X1072 | Pointer |
|
- | |||||
| 2115 | WE2X289 | Female Bushing |
|
- | |||||
| 2116 | WE4X639 | Thermostat Safety |
|
- | |||||
| 2118 | WE2X290 | Clip Insulator |
|
- | |||||
| 2119 | WE1X989 | Insulator |
|
- | |||||
| 2121 | WE4X640 | Switch Door |
|
- | |||||
| 2122 | WE19X863 | Trimplate Asmy |
|
- | |||||
| 2124 | WE1X1071 | Timer Knob |
|
- | |||||
| 2126 | WE4X683 | Timer |
|
- | |||||
| 2129 | WE1X993 | Buzzer |
|
- | |||||
| 2130 | WE2X291 | Nut |
|
- | |||||
| 2132 | WE8X43 | Cordset 220v |
|
- | |||||
| 2134 | WE4X168 | Block Terminal |
|
$ 29.10 | |||||
| 2137 | WE2X294 | Washer |
|
- | |||||
| 2138 | WZ07X0031 | Nut |
|
- | |||||
| 2139 | WE2X296 | Clip |
|
- | |||||
| 2140 | WE4X647 | Switch Push To Start |
|
- | |||||
| 2152 | WE2X292 | Washer Ground |
|
- | |||||
| 2153 | WE1X994 | Ground Strap |
|
- | |||||
| 2154 | WE4X671 | Heater Thermostat |
|
- | |||||
| 2156 | WE4X732 | T'stat Safety |
|
- | |||||
| 2220 | WH2X988 | Clip Harness |
|
- |
