1 - Console, Controls

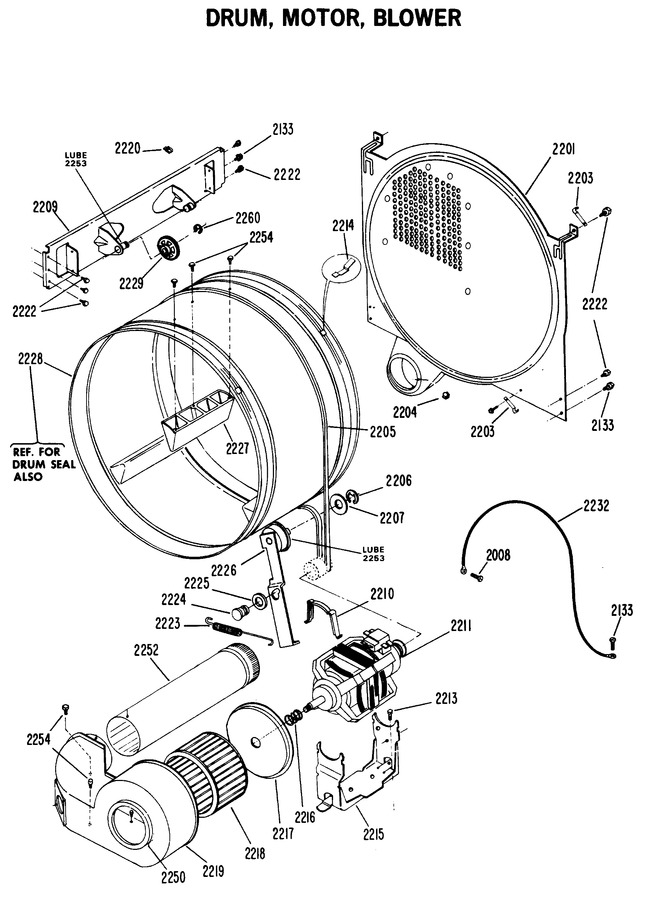

2 - Drum, Motor, Blower
3 - Cabinet Components
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2201 | WE14X146 | Plenum Asm |
|
- | |||||
| 2203 | WE2X297 | Clip Hrn To R.h.side Pnl |
|
- | |||||
| 2204 | WE2X298 | Clip |
|
- | |||||
| 2205 | WE12X51 | Belt |
|
- | |||||
| 2206 | WE2X299 | Snap Ring |
|
- | |||||
| 2207 | WE2X300 | Spacer Washer |
|
- | |||||
| 2209 | WE1X996 | Channel Asm |
|
- | |||||
| 2210 | WE2X301 | Motor Clip |
|
- | |||||
| 2211 | WE17X44 | Motor & Switch Asm |
|
- | |||||
| 2214 | WE2X302 | Clip-gasket Supt |
|
- | |||||
| 2215 | WE13X141 | Motor Cradle |
|
- | |||||
| 2216 | WE1X997 | Spring |
|
- | |||||
| 2217 | WE1X998 | Cover |
|
- | |||||
| 2218 | WE16X24 | Impeller |
|
- | |||||
| 2219 | WE14X183 | Blower Housing |
|
- | |||||
| 2220 | WH2X988 | Clip |
|
- |
