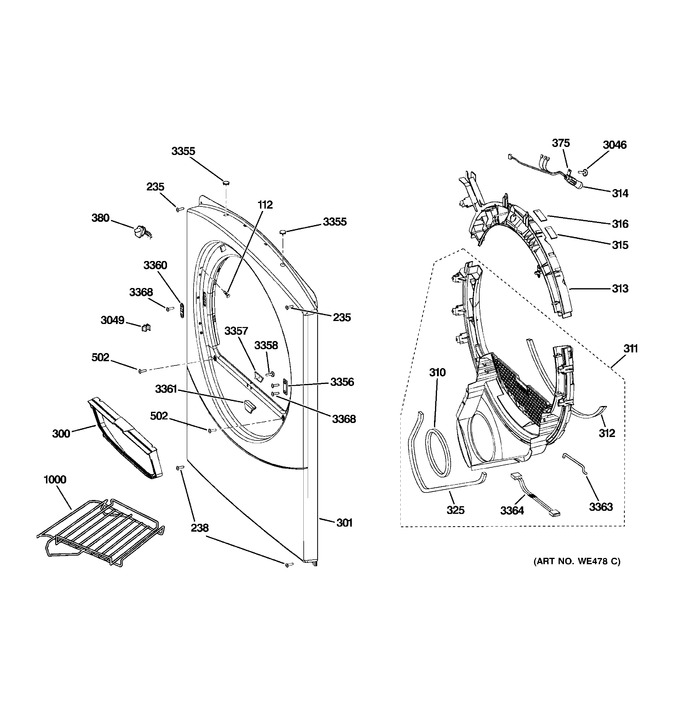

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WE1M567		Plug Door Rvsbl		Appelez-nous	-
235	WE2X263		Screw		Appelez-nous	-
238	WE2M224		Screw Gray #10-16 3/4		Appelez-nous	-
300	WE18M24		Filter Asm		Appelez-nous	-
301	WE20M326		Front Panel " Granite "		Appelez-nous	-
310	WE1M573		Gasket (seal)		Appelez-nous	-
311	WE14M105		Trap Duct Complete Asm		Appelez-nous	-
312	WE9M15		Felt		Appelez-nous	-
313	WE14M106		Top Bearing		Appelez-nous	-
314	WW03F00458		Lamp   (Replaces: WE4M305)			Immediately	$ 13.37
315	WE1M504		Slide Drum - White			Immediately	$ 40.66
316	WW02A00129		Slide, Drum - Green   (Replaces: WE1M507)			Immediately	$ 15.72
325	WW03A00117		Trap Duct / Front Seal   (Replaces: WE1M574)				$ 3.57
375	WE5M27		Socket Asm		Appelez-nous	-
380	WE4M337		Door Switch		Appelez-nous	-
502	WW02A00031		Screw #10   (Replaces: WE2M174)			Immediately	$ 3.57
1000	WE1M568		Shoe Rack		Appelez-nous	-
3046	WW02A00097		Screw #8   (Replaces: WE2M196)				$ 3.57
3049	WW02A00004		Strike Door   (Replaces: WE1X1192)			Immediately	$ 3.57
3355	WE1M572		Prongued Plug Button		Appelez-nous	-
3356	WW02A00057		Strike Plate   (Replaces: WE1M569)			Immediately	$ 3.57
3357	WE2M213		Nut-strip Door Guide		Appelez-nous	-
3358	WD21M131		Screw Ground Front		Appelez-nous	-
3360	WE1M570		Strike Plate W/strk Hole				$ 10.01
3361	WE1M571		Door Guide		Appelez-nous	-
3363	WW02F00088		Sensor Rods   (Replaces: WE1M575)			Immediately	$ 9.65
3364	WE5M26		Harness Sensor Trap Duct		Appelez-nous	-
3368	WE2M217		Screw Hinge To Front		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
