SELECT A DIAGRAM

1 - Controls & Backsplash


2 - Front Panel


3 - Door


4 - Cabinet


5 - Blower & Motor


6 - Drum


7 - Gas Valve & Burner Assembly

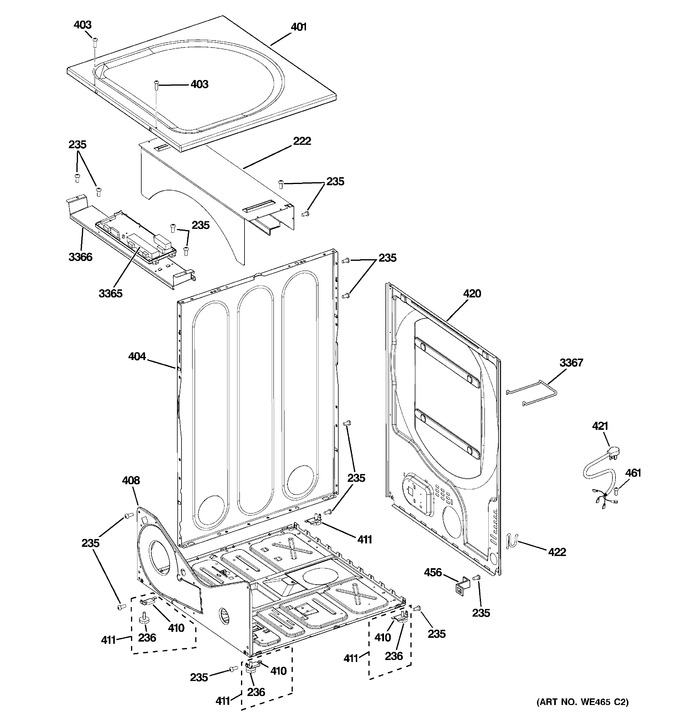

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
222	WE1M585		Rear Plate		Appelez-nous	-
235	WE2X263		Screw		Appelez-nous	-
236	WE1M368		Levelling Screw		Appelez-nous	-
401	WE20M328		Cover " Granite "		Appelez-nous	-
403	WE2M214		Screw Flat Head/ab		Appelez-nous	-
404	WE20M330		Side Panel " Granite "		Appelez-nous	-
408	WE20M331		Chassis Bottom		Appelez-nous	-
410	WE1M528		Rear Brkt Level Leg		Appelez-nous	-
411	WW02F00139		Level Leg & Brkt Rear   (Replaces: WE1M468)				$ 19.74
420	WE20M301		Panel Rear 6 Cu Ft		Appelez-nous	-
421	WE26M335		Cord Set 120v		Appelez-nous	-
422	WE1M155		Cord Clip		Appelez-nous	-
456	WE1X617		Pipe Clamp		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
3365	WE4M332		Main Power Board Asm. (		Appelez-nous	-
3366	WE1M586		Main Power Board Support		Appelez-nous	-
3367	WE1M587		Exaust Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
