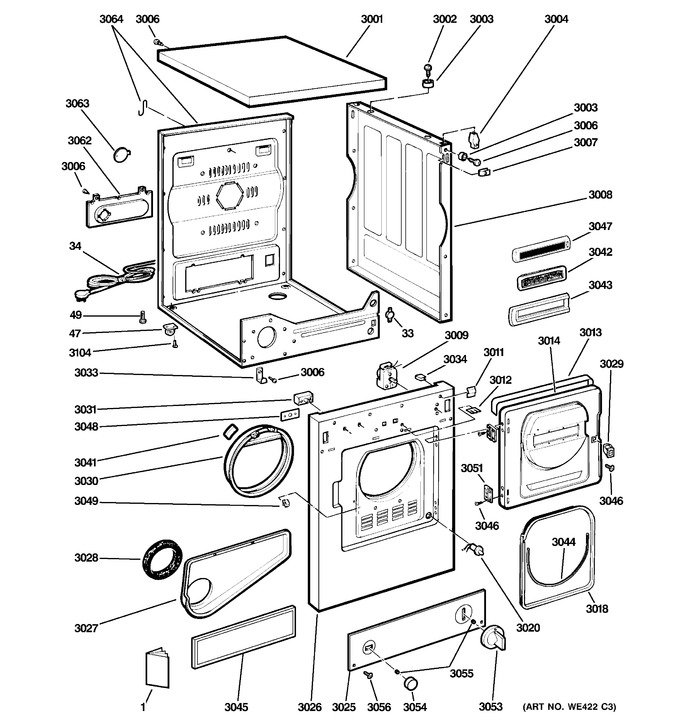

1 - Backsplash, Cabinet & Front Panel
2 - Blower & Motor
3 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16065 | Mini Manual Wiring |
|
- | |||||
| 1 | 31-16072 | Install Instruction |
|
- | |||||
| 1 | 49-90145 | Use & Care |
|
- | |||||
| 33 | WE4M293 | Thermostat Ambiant |
|
- | |||||
| 34 | WW02F00123 | Cord Set (Replaces: WE26M337) |
|
$ 48.04 | |||||
| 47 | WE1M503 | Caster Asm |
|
- | |||||
| 49 | WG04L00345 | Stabilizing Leg Asm. (Replaces: WE2M188) |
|
Immediately | $ 4.04 | ||||
| 3001 | WE20M204 | Cover (white) No Hole |
|
- | |||||
| 3002 | WE2M97 | Screw |
|
- | |||||
| 3003 | WE1M226 | Bumper |
|
- | |||||
| 3004 | WE1M195 | Clip Cover |
|
- | |||||
| 3006 | WE2X263 | Screw |
|
- | |||||
| 3006 | WE2M154 | Screw |
|
- | |||||
| 3007 | WE2X196 | Speednut |
|
- | |||||
| 3008 | WE20M202 | Side Panel (white) |
|
- | |||||
| 3009 | WE1M398 | Shield Control |
|
- | |||||
| 3009 | WW02F00520 | Timer Asm (Replaces: WE4M292) |
|
Immediately | $ 165.87 | ||||
| 3011 | WE2M95 | Speedclip |
|
- | |||||
| 3012 | WE1X762 | Clip Grounding |
|
- | |||||
| 3012 | WE1M317 | Speed Clip |
|
- | |||||
| 3013 | WW02L00171 | Door Panel (white) (Replaces: WE10M86) |
|
$ 61.04 | |||||
| 3014 | WE10M94 | Inner Door (white) |
|
- | |||||
| 3018 | WW03L00119 | Door Gasket (Replaces: WE9M16) |
|
Immediately | $ 24.11 | ||||
| 3020 | WE4M41 | Switch Door |
|
- | |||||
| 3025 | WE19M1308 | Switch Trim " Black " |
|
- | |||||
| 3026 | WE20M309 | Front Panel (white) |
|
- | |||||
| 3027 | WE14M60 | Air Duct |
|
- | |||||
| 3028 | WE9X38 | Felt Asm W/staple (Replaces: WE9X35) |
|
$ 58.83 | |||||
| 3029 | WE1M187 | Latch |
|
- | |||||
| 3030 | WE3M21 | Bearing Drum & Felt Kit |
|
- | |||||
| 3031 | WE4M145 | Start Switch |
|
$ 77.15 | |||||
| 3033 | WE1M193 | Bracket Cabinet Front |
|
$ 121.62 | |||||
| 3034 | WE1X408 | Cable Clip |
|
- | |||||
| 3041 | WE1M404 | Slide |
|
- | |||||
| 3042 | WG04F00431 | Filter Screen Lint (Replaces: WE18M20) |
|
Immediately | $ 26.73 | ||||
| 3043 | WW02L00754 | Slide , Grid (Replaces: WE1M407) |
|
Immediately | $ 49.25 | ||||
| 3044 | WW02L00178 | Gasket (Replaces: WE9M17) |
|
Immediately | $ 19.56 | ||||
| 3045 | WE1M465 | Insulation Cabinet |
|
- | |||||
| 3046 | WE2M170 | Screw |
|
- | |||||
| 3047 | WW02L00754 | Grid (Replaces: WE1M406) |
|
Immediately | $ 49.25 | ||||
| 3048 | WE1M456 | Shield Start Switch |
|
- | |||||
| 3049 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.97 | ||||
| 3051 | WW02L00028 | Hinge (Replaces: WE1M505) |
|
Immediately | $ 9.92 | ||||
| 3053 | WE1X1265 | Knob Asm Dryer |
|
- | |||||
| 3054 | WG04L00314 | Switch Knob Start Black (Replaces: WE1M356) |
|
$ 13.10 | |||||
| 3055 | WW02L00643 | Clip (Replaces: WE1M140) |
|
Immediately | $ 18.66 | ||||
| 3056 | WE2M187 | Screw |
|
- | |||||
| 3062 | WE1M194 | Backplate Access |
|
- | |||||
| 3063 | WE1M225 | Cover Knockout Round |
|
$ 729.98 | |||||
| 3064 | WE1M155 | Cord Clip |
|
- | |||||
| 3064 | WE20M313 | Cabinet Base & Rear |
|
- | |||||
| 3104 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.97 |
