View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Backsplash, Cabinet & Front Panel

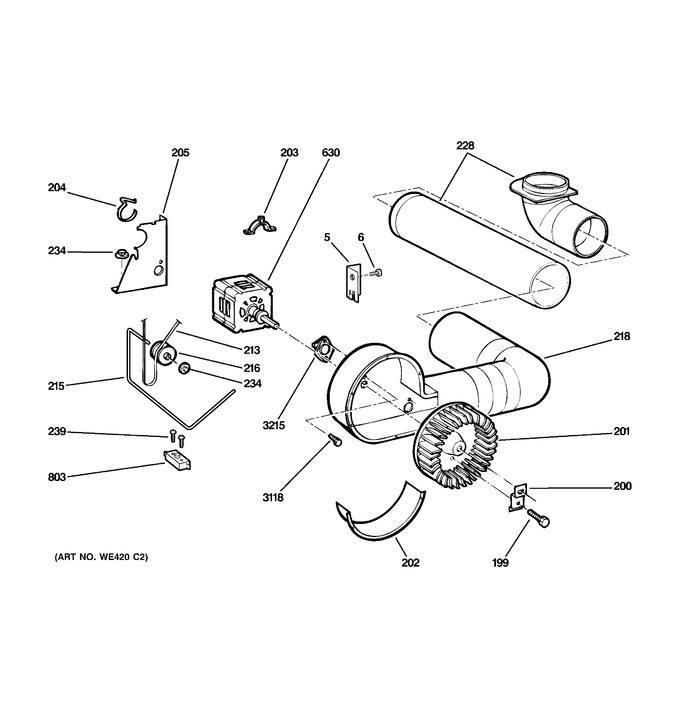

2 - Blower & Motor
3 - Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WE1M493 | Bracket Belt Switch |
|
- | |||||
| 6 | WE2M175 | Screw # 8 |
|
- | |||||
| 199 | WE2M98 | Screw |
|
- | |||||
| 200 | WW02A00039 | Clamp (Replaces: WE00M112) |
|
$ 4.04 | |||||
| 201 | WW02F00183 | Wheel Blower (Replaces: WE16X16) |
|
$ 68.05 | |||||
| 202 | WE1X689 | Deflector |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M36 | Motor Support |
|
- | |||||
| 213 | WE12M9 | Belt Drive |
|
- | |||||
| 215 | WW02F00171 | Idler Arm (Replaces: WE3M18) |
|
$ 24.91 | |||||
| 216 | WW02F00871 | Idler Pulley (Replaces: WE12M8) |
|
Immediately | $ 5.96 | ||||
| 218 | WE14M100 | Blower Housing Assembly |
|
- | |||||
| 228 | WE14M101 | Pipe Exaust & Rivet |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 10.12 | |||||
| 234 | WE2X154 | Palnut |
|
$ 55.13 | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 630 | WE17M24 | Motor & Pulley Asm. |
|
- | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 17.47 | ||||
| 3118 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.97 | ||||
| 3215 | WE4M295 | Biased Thermo Orange |
|
- | |||||
| 3215 | WE4M294 | Biased Thermo Green |
|
- |
