SELECT A DIAGRAM

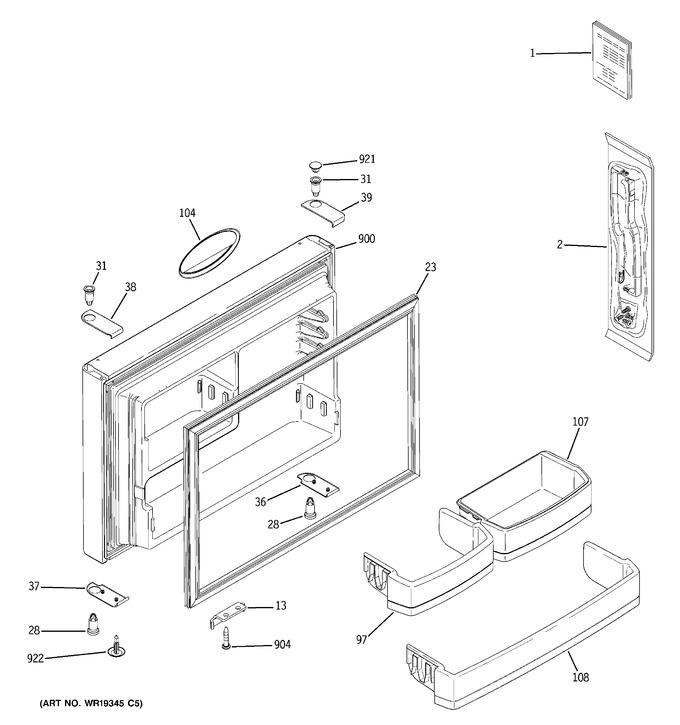

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts


8 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51591		Pm Mini Wiring Manual		Appelez-nous	-
1	49-60336		Pm Guide Owners		Appelez-nous	-
2	WR12X10750		Pk Handle Large Asm Ss		Appelez-nous	-
13	WR02X10930		Stop Door Ff/fz Bk		Appelez-nous	-
23	WR01L02050		Gasket Fz Bk   (Replaces: WR24X10079)				$ 58.06
28	WR02X10931		Thimble Door Plastic Bk		Appelez-nous	-
31	WR02X10932		Thimble Door Plastic Bk		Appelez-nous	-
36	WR02X10929		Cap Door Bottom Bk		Appelez-nous	-
37	WR02X10928		Cap Door Bottom Bk		Appelez-nous	-
38	WR02X10927		Cap Corner Top Bk		Appelez-nous	-
39	WR02X10926		Cap Corner Top Bk		Appelez-nous	-
97	WR71X10308		Module Fixed Fz		Appelez-nous	-
104	WR04X10092		Lens Nameplate Bk		Appelez-nous	-
107	WR71X10309		Module Shelf 22		Appelez-nous	-
108	WR71X10343		Module Fixed Fz		Appelez-nous	-
900	WR78X11127		Door Foam Asm Fz Mod 22		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
921	WR02X10934		Plug Button Thimble Bk		Appelez-nous	-
922	WR02X10976		Plug Button Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
