SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts


8 - Unit Parts

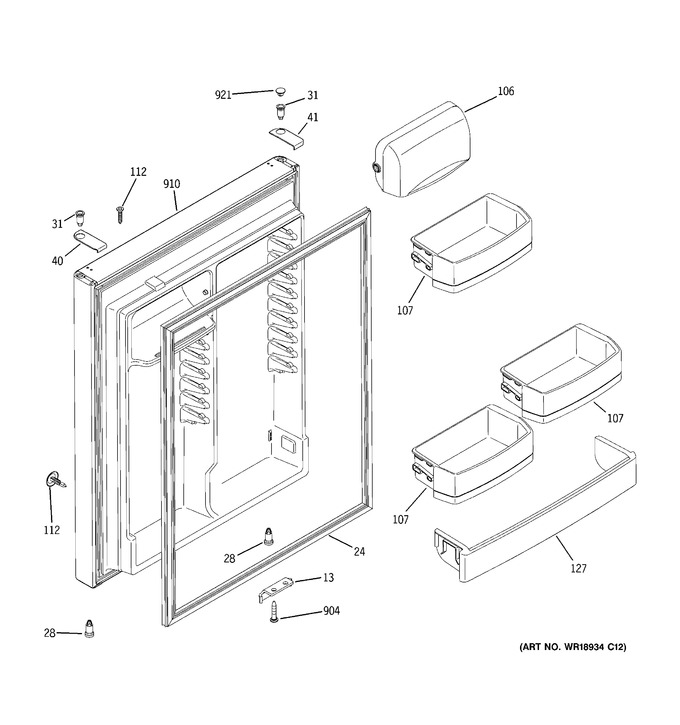

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	WR02X10930		Stop Door Ff/fz Bk		Appelez-nous	-
24	WR01L02054		Gasket Ff Bk   (Replaces: WR24X10080)				$ 156.16
28	WR02X10931		Thimble Door Plastic Bk		Appelez-nous	-
31	WR02X10932		Thimble Door Plastic Bk		Appelez-nous	-
40	WR02X10925		Cap Corner Top Bk		Appelez-nous	-
41	WR02X10924		Cap Corner Top Bk		Appelez-nous	-
106	WR01L03967		Door Dairy Clear 22   (Replaces: WR22X10028)				$ 23.22
107	WR71X10309		Module Shelf 22		Appelez-nous	-
112	WR01A00518		Plug Door Rvsbl Bk   (Replaces: WR2X8701)				$ 4.20
127	WR71X10307		Module Fixed Ff		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
910	WR78X11126		Door Foam Asm Ff Mod 22		Appelez-nous	-
921	WR02X10934		Plug Button Thimble Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
