SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelves


5 - Unit Parts

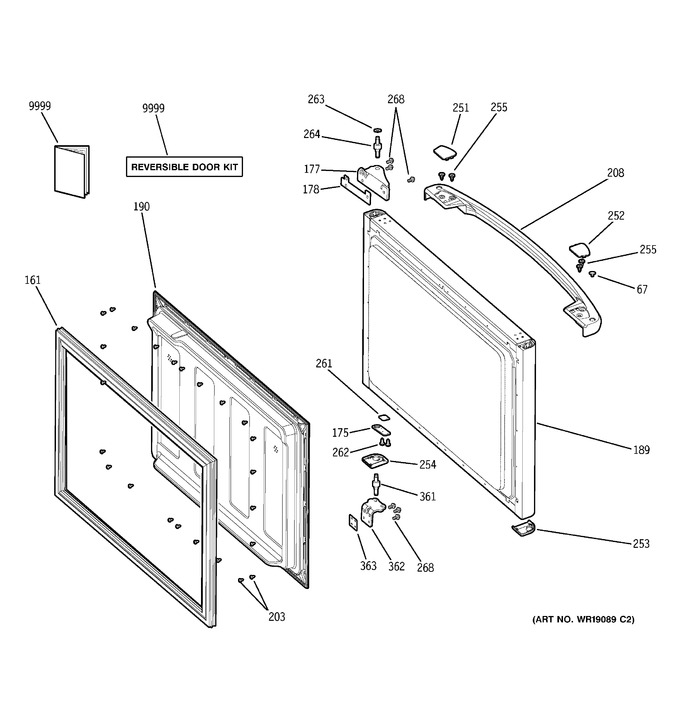

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
67	WR02X11120		Plug Button (bisque)		Appelez-nous	-
67	WR02X11090		Plug Button,thimble Bq		Appelez-nous	-
161	WR24X10104		Gkt,door(white)		Appelez-nous	-
175	WR13X10219		Door Stop-rh		Appelez-nous	-
177	WR13X10223		Hinge,mid		Appelez-nous	-
178	WR13X10224		Shim, Mid Hinge		Appelez-nous	-
189	WR78X10570		Door, Foamed Bq		Appelez-nous	-
190	WR78X10571		Liner, Door Fz		Appelez-nous	-
203	WR01X10286		Screw		Appelez-nous	-
208	WR12X10518		Handle Asm Fz Bq		Appelez-nous	-
251	WR02X11088		Cover,handle Rh Fz Bq		Appelez-nous	-
252	WR02X11089		Cover,handle Lh Fz Bq		Appelez-nous	-
253	WR02X11091		Epaulet,dr Cnr Rh B		Appelez-nous	-
254	WR02X11092		Epaulet,dr Cnr Lh B		Appelez-nous	-
255	WR01X10275		Screw (10-24 Shoulder)		Appelez-nous	-
261	WR13X10222		Shim, Door Stop		Appelez-nous	-
262	WR1M712		Scr Handle Stop		Appelez-nous	-
263	WR01X10276		Washer		Appelez-nous	-
264	WR02X11121		Pin, Mid Hinge		Appelez-nous	-
268	WR01X10283		Screw, Hinge (12-24tt)bq		Appelez-nous	-
268	WR01X10277		Screw, Hinge (12-24 Tt)		Appelez-nous	-
361	WR13X10230		Pin, Bottom Hinge		Appelez-nous	-
362	WR13X10228		Hinge Asm., Bottom		Appelez-nous	-
363	WR13X10229		Shim, Btm Hinge (wh)		Appelez-nous	-
9999	49-60135		Use & Care Manual		Appelez-nous	-
9999	31-47018		Mini Manual		Appelez-nous	-
9999	WR49X10065		Reversible Door Kit L.h.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
