SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelves


5 - Unit Parts

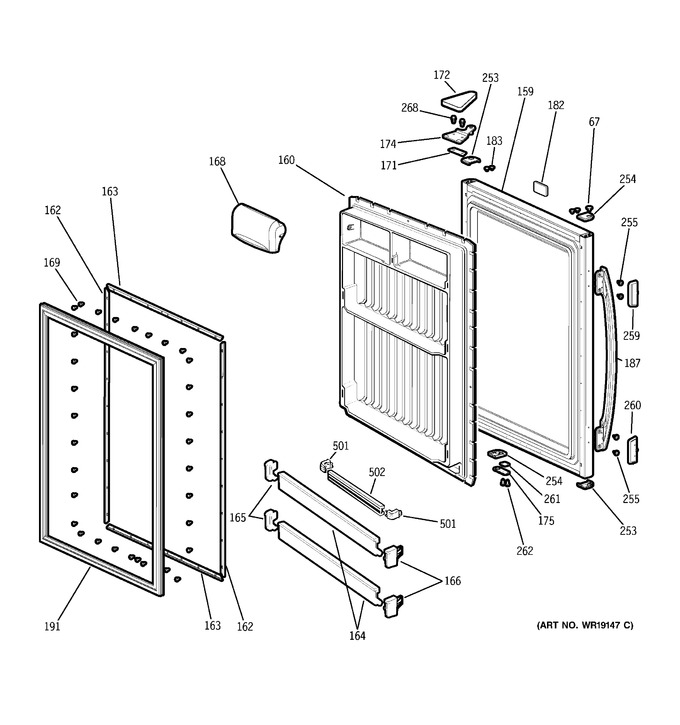

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
67	WR02X11090		Plug Button,thimble Bq		Appelez-nous	-
67	WR02X11120		Plug Button (bisque)		Appelez-nous	-
159	WR78X10564		Door, Ff Bq		Appelez-nous	-
160	WR78X10631		Liner, Door Ff		Appelez-nous	-
162	WR02X11048		Retainer Strip		Appelez-nous	-
163	WR02X11049		Retainer Strip		Appelez-nous	-
164	WR17X11350		Shelf Front, Door (ff)		Appelez-nous	-
165	WG03F00926		Cap Shlf Frnt Rh   (Replaces: WR2X9296)				$ 13.73
166	WG03L00278		Cap Shlf Frnt Lh   (Replaces: WR2X9295)				$ 30.18
168	WR38X10258		Door, Dairy (clr)		Appelez-nous	-
169	WR01X10322		Screw		Appelez-nous	-
171	WR02X11050		Shim		Appelez-nous	-
172	WR2S56		Cover,top Hinge(bisque)		Appelez-nous	-
174	WR13X10218		Hinge, Top		Appelez-nous	-
175	WR13X10219		Door Stop-rh		Appelez-nous	-
182	WR04X10059		Nameplate (ge)		Appelez-nous	-
183	WR02X11095		Plug Button (bisque)		Appelez-nous	-
187	WR12X10515		Handle Asm Ff Bq		Appelez-nous	-
191	WR24X10103		Gasket, Door(bisque)		Appelez-nous	-
253	WR02X11091		Epaulet,dr Cnr Rh B		Appelez-nous	-
254	WR02X11092		Epaulet,dr Cnr Lh B		Appelez-nous	-
255	WR01X10275		Screw (10-24 Shoulder)		Appelez-nous	-
259	WR02X11093		Cover,handle Rh Ff Bq		Appelez-nous	-
260	WR02X11094		Cover,handle Lh Ff Bq		Appelez-nous	-
261	WR13X10222		Shim, Door Stop		Appelez-nous	-
262	WR1M712		Scr Handle Stop		Appelez-nous	-
268	WR01X10283		Screw, Hinge (12-24tt)bq		Appelez-nous	-
268	WR01X10277		Screw, Hinge (12-24 Tt)		Appelez-nous	-
501	WG03L00648		Cap Shlf Frnt Narrow   (Replaces: WR2X9162)			Immediately	$ 19.06
502	WR17X11351		Shelf Front, Short		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
