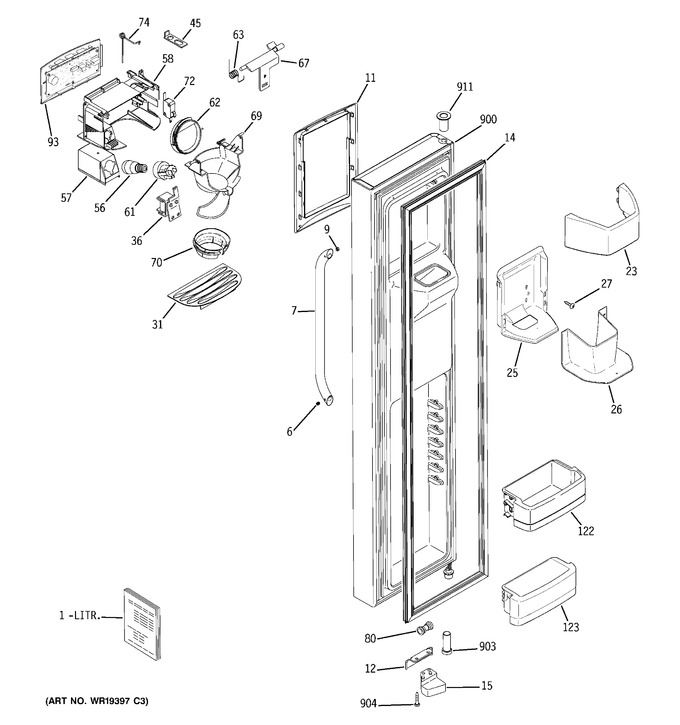

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60297 | Pm Guide Owner |
|
- | |||||
| 1 | 31-46040 | Pm Helpful Hints Label |
|
- | |||||
| 1 | 31-51573 | Pm Mini Manual Wiring |
|
- | |||||
| 6 | WR02X11850 | Set Screw |
|
- | |||||
| 6 | WR01A01440 | Set Screw (Replaces: WR01X10450) |
|
$ 9.53 | |||||
| 7 | WR12X10700 | Tubulur Handle Asm 30" |
|
- | |||||
| 9 | WR02X11855 | Fastener Handle Ss |
|
- | |||||
| 11 | WR38X10237 | Recess Trim Clad Mdel Bk |
|
- | |||||
| 12 | WR01A00225 | Stop Door Bk (Replaces: WR02X10814) |
|
$ 12.40 | |||||
| 14 | WR01L08732 | Gasket Door Fz Bk (Replaces: WR24X10158) |
|
$ 65.51 | |||||
| 15 | WR02X10780 | Cam Closure Fz Bk |
|
- | |||||
| 23 | WR71X10499 | Module Fz Upper |
|
- | |||||
| 25 | WR71X10500 | Module Fz Seat |
|
- | |||||
| 26 | WR71X10495 | Guide Ice |
|
- | |||||
| 27 | WR01X10387 | Scr 8-18 Ab Ovp 7/8 Ss |
|
- | |||||
| 31 | WR01L03203 | Grille Recess Bk (Replaces: WR17X11655) |
|
$ 31.76 | |||||
| 36 | WR01F01784 | Solenoid Asm (Replaces: WR62X10020) |
|
$ 88.99 | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 56 | WG03A03944 | Bulb Recs 12v (Replaces: WR02X10675) |
|
Immediately | $ 67.41 | ||||
| 57 | WR02X10670 | Reflector Light |
|
- | |||||
| 58 | WR17X11077 | Housing Shield Disp Bk |
|
- | |||||
| 61 | WR2X9561 | Lamp Socket |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X11653) |
|
$ 65.21 | |||||
| 63 | WG03A00047 | Spring Recess Door (Replaces: WR02X10585) |
|
Immediately | $ 3.97 | ||||
| 67 | WR01L00935 | Crank Door Recess (Replaces: WR17X10706) |
|
$ 12.71 | |||||
| 69 | WG03F00291 | Funnel Ice Disp Bk (Replaces: WR17X11267) |
|
$ 63.62 | |||||
| 70 | WR17X11268 | Extension Funnel Ice Bk |
|
- | |||||
| 72 | WR01F03637 | Switch (Replaces: WR23X10224) |
|
Immediately | $ 17.47 | ||||
| 74 | WR02X10584 | Spring Funnel |
|
- | |||||
| 80 | WR01F02845 | Union Connector (Replaces: WR02X11330) |
|
Immediately | $ 19.06 | ||||
| 93 | WR01F01134 | Interface Disp Asm Bk (Replaces: WR55X10304) |
|
$ 90.75 | |||||
| 122 | WR01L02896 | Module Shelf Fz (Replaces: WR71X10291) |
|
$ 26.70 | |||||
| 123 | WR71X10501 | Module Shelf Fz Fixed |
|
- | |||||
| 900 | WR78X11074 | Door Foam Asm Fz Ss |
|
- | |||||
| 903 | WR01X10234 | Thimble Door Btm Fz Bk |
|
- | |||||
| 904 | WR01X10316 | Screw Door Stop |
|
- | |||||
| 904 | WR01X10375 | Screw Door Stop T20 |
|
- | |||||
| 911 | WR01X10233 | Thimble Door Top Bk |
|
- |
