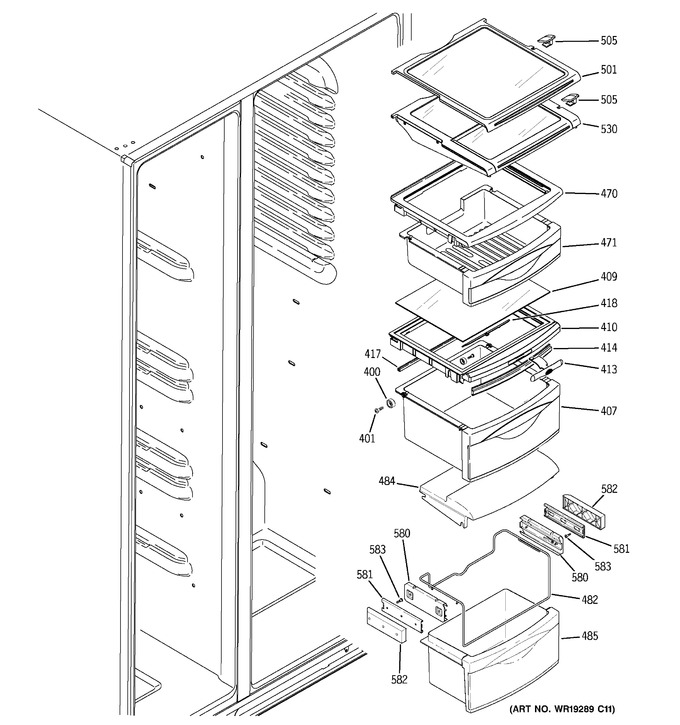

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.97
401	WR01X10214		Scr 10-16 Pl Pnp 5/8 Szn		Appelez-nous	-
407	WR32X10290		Pan Middle Asm		Appelez-nous	-
409	WR01L01061		Cover Pan Glass   (Replaces: WR32X10200)			Immediately	$ 14.99
410	WR32X10288		Cover Middle Pan		Appelez-nous	-
413	WR02X10821		Humidity Control		Appelez-nous	-
414	WR01L04170		Gasket Pan Crv Front   (Replaces: WR14X10059)				$ 7.94
417	WR14X10058		Gasket Pan Crv Rear		Appelez-nous	-
418	WR02X10633		Slide Middle Pan Cover		Appelez-nous	-
470	WR32X10306		Cover Top Pan Asm		Appelez-nous	-
471	WR32X10289		Pan Top Asm		Appelez-nous	-
482	WR17X11787		Wireframe Pan		Appelez-nous	-
482	WR17X11482		Wireframe Pan		Appelez-nous	-
484	WR32X10446		Cover Pan Asm		Appelez-nous	-
485	WR32X10452		Meat Pan Asm 21'/23'		Appelez-nous	-
501	WR71X10392		Shelf Slideout Asm		Appelez-nous	-
505	WR01A00596		Stop Shelf   (Replaces: WR02X10662)				$ 28.59
530	WR71X10578		Shelf Tuckaway Asm		Appelez-nous	-
580	WR72X10140		Slide And Bracket Asm		Appelez-nous	-
581	WR72X10141		Slide Liner		Appelez-nous	-
582	WR72X10142		Spacer Slide		Appelez-nous	-
583	WR01X10399		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
