Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1118413 Shelf, Cantilever (3) Appelez-nous -
2 2148237 Glass, Shelf Appelez-nous -
3 WP1126289 Cover, Crisper   (Replaces: 2148235) Special Order $ 181.71

4 1114306 Reflector, Shelf Appelez-nous -
5 1114302 Trim, Shelf Appelez-nous -
6 1110795 Trim, Crisper Cover Appelez-nous -
7 1114687 Glass, Crisper Cover Special Order $ 88.24

8 WP2148298 Cover, Meat Pan   (Replaces: 2157051) Special Order $ 174.59

9 WP982704 Container   (Replaces: 2148079) Special Order $ 31.00

10 2148980 Pan, Crisper Appelez-nous -
11 2148192 Pan, Meat Appelez-nous -
12 2148378 Front, Crisper Pan Appelez-nous -
13 1116718 Slide, Crisper Appelez-nous -
14 489226 Screw Appelez-nous -
15 2148122 Pan Shelf & Slide Appelez-nous -
16 2148300 Glass Appelez-nous -
17 2148301 Trim, Shelf Appelez-nous -
18 2148005 Snack Bin Appelez-nous -
19 4388538 Shelf Stud   (Replaces: 2147997) In-Stock Immediately $ 31.34

20 WP2149540 Shelf Stud   (Replaces: 2149540) Special Order $ 10.44

21 4388538 Shelf Stud   (Replaces: 1110718) In-Stock Immediately $ 31.34


    View Diagram in Separate Window     Print Icon   Print Part List

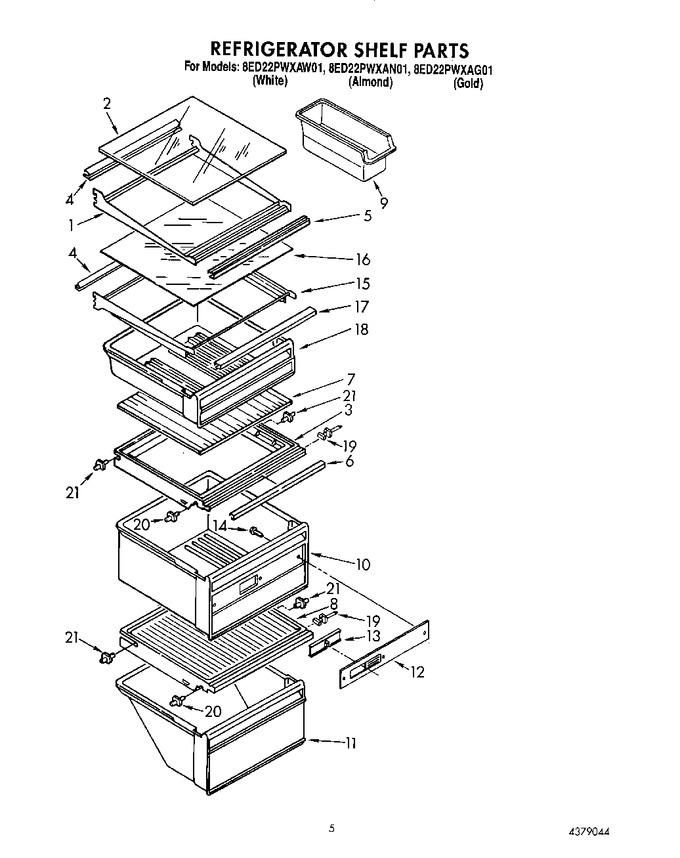

Diagram for 8ED22PWXAN01
