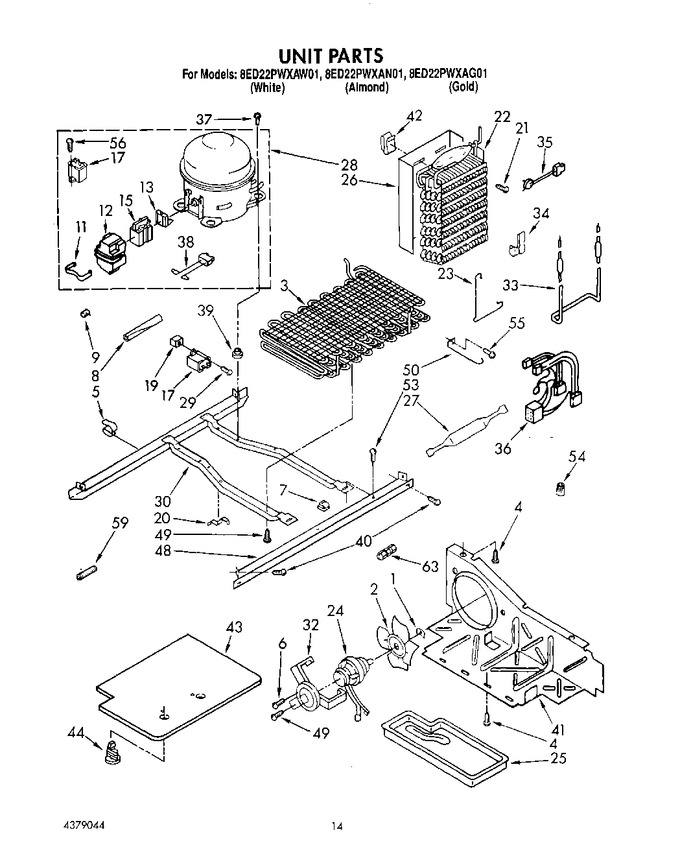

09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 13.71
7	934011		Clip, Tube (3)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
11	938384		Strap (service)		Appelez-nous	-
11	943322		Strap (production)		Appelez-nous	-
12	1108115		Cover (service)		Appelez-nous	-
12	1105055		Cover (production)		Appelez-nous	-
13	1118841		Overload (service (includes Relay))		Appelez-nous	-
13	2154857		Overload (production (includes Relay))		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	WPW10662129		Capacitor (production)   (Replaces: 1114291)			Immediately	$ 58.86
17	WPW10662129		Capacitor (service)   (Replaces: 1118581)			Immediately	$ 58.86
19	509812		Screw Grommet		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	WP2188822		Evaporator   (Replaces: 2155500)			Immediately	$ 356.84
23	2161329		Clamp		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 88.15
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2149293		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
28	876765		Also Order Tube Kit)			Immediately	$ 90.65
28	2154561		Compressor (includes Items 11, 12, 13, 15, 17, 38 & 56)		Appelez-nous	-
29	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162079		Heater, Defrost		Appelez-nous	-
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
36	2167064		Unit, Harness		Appelez-nous	-
37	489387		Screw		Appelez-nous	-
38	WP2172890		Wire, Connector   (Replaces: 1127675)				$ 8.51
39	2162067		Grommet (4)		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 101.20
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2160505		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 11.26
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
53	WP489427		Screw   (Replaces: 489339)				$ 7.84
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
56	W11693756		Screw   (Replaces: 487240)			Immediately	$ 14.76
59	983659		Spring-tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 95.92
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 137.25
63	WP4211117		Union   (Replaces: 2150347)				$ 10.46
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
63	978026		Valve, Access (5/16``)			Immediately	$ 134.49
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
