SELECT A DIAGRAM

1 - Freezer Door

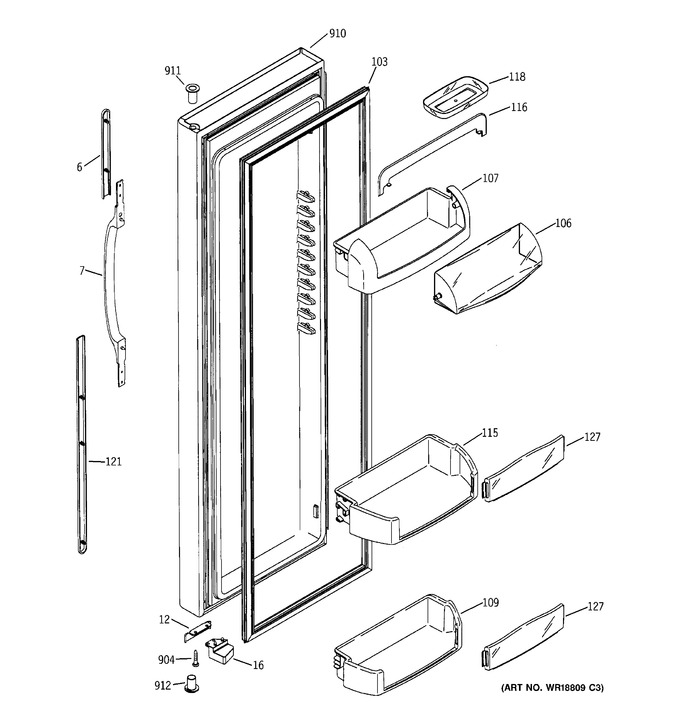

2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10164		Tail Handle Sxs Bk		Appelez-nous	-
7	WR12X10434		Handle Sxs Bk		Appelez-nous	-
12	WR01A00225		Stop Door Bk   (Replaces: WR02X10814)				$ 12.40
16	WR01F01557		Cam Closure Ff Bk   (Replaces: WR02X10779)				$ 32.88
103	WR24X10071		Gasket Door Ff Bk		Appelez-nous	-
106	WR22X10022		Door Dairy Clear		Appelez-nous	-
107	WR22X10021		Compartment Dairy		Appelez-nous	-
109	WR71X10244		Module Shelf Ff		Appelez-nous	-
115	WR71X10253		Module Shelf Ff		Appelez-nous	-
116	WR22X10023		Trim Dairy Compartment		Appelez-nous	-
118	WR22X10018		Dish Butter		Appelez-nous	-
121	WR12X10218		Tail Handle Sxs Bk		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10289)			Immediately	$ 61.39
904	WR1X2134		Scr 10-32		Appelez-nous	-
910	WR78X10426		Door Foam Asm Ff Bk		Appelez-nous	-
911	WR01X10233		Thimble Door Top Bk		Appelez-nous	-
912	WR01X10232		Thimble Door Btm Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
