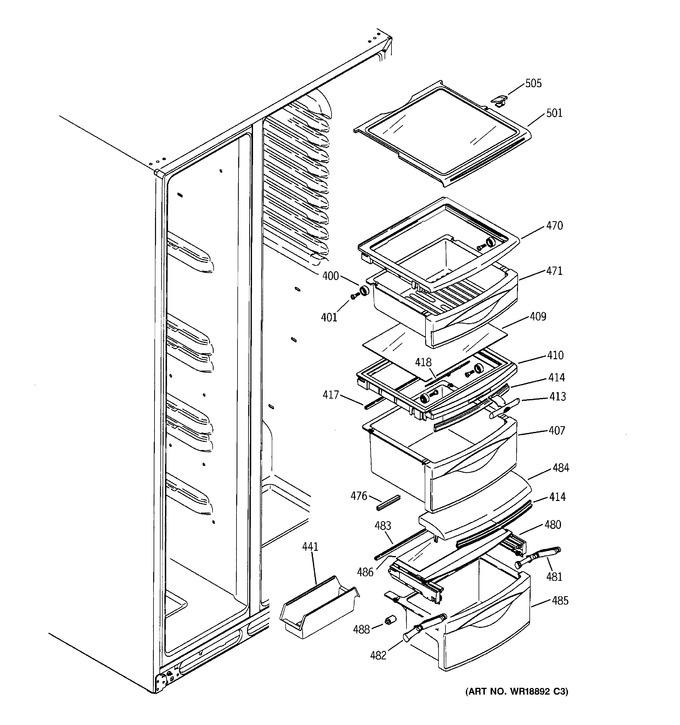

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.57
401	WR01X10214		Scr 10-16 Pl Pnp 5/8 Szn		Appelez-nous	-
407	WR32X10186		Pan Middle Asm		Appelez-nous	-
409	WR01L01062		Glass Pan Covr   (Replaces: WR32X10156)				$ 50.38
410	WR32X10184		Cover Middle Pan		Appelez-nous	-
413	WR02X10801		Humidity Control		Appelez-nous	-
414	WR01L04170		Gasket Pan Crv Front   (Replaces: WR14X10059)				$ 7.15
417	WR14X10058		Gasket Pan Crv Rear		Appelez-nous	-
418	WR02X10633		Slide Middle Pan Cover		Appelez-nous	-
441	WR17X10919		Bucket Utility		Appelez-nous	-
470	WR32X10182		Cover Top Pan Asm		Appelez-nous	-
471	WR32X10187		Pan Top Asm		Appelez-nous	-
476	WR14X10102		Gasket Pan Crv Rear		Appelez-nous	-
480	WR01L00734		Cover Top Meat   (Replaces: WR32X10153)				$ 64.85
481	WR02X10655		Linkage Meat Pan Rh		Appelez-nous	-
482	WR02X10654		Linkage Meat Pan Lh		Appelez-nous	-
483	WR14X10060		Gasket Cover Rear		Appelez-nous	-
484	WR01L00734		Cover Front Meat   (Replaces: WR32X10146)				$ 64.85
485	WR32X10185		Pan Bottom Asm		Appelez-nous	-
486	WR01L01060		Glass Pan Covr   (Replaces: WR32X10155)				$ 45.83
488	WR02X10815		Boss Spacer		Appelez-nous	-
501	WR71X10288		Shelf Slideout Asm		Appelez-nous	-
505	WR01A00596		Stop Shelf   (Replaces: WR02X10662)				$ 25.73
