SELECT A DIAGRAM

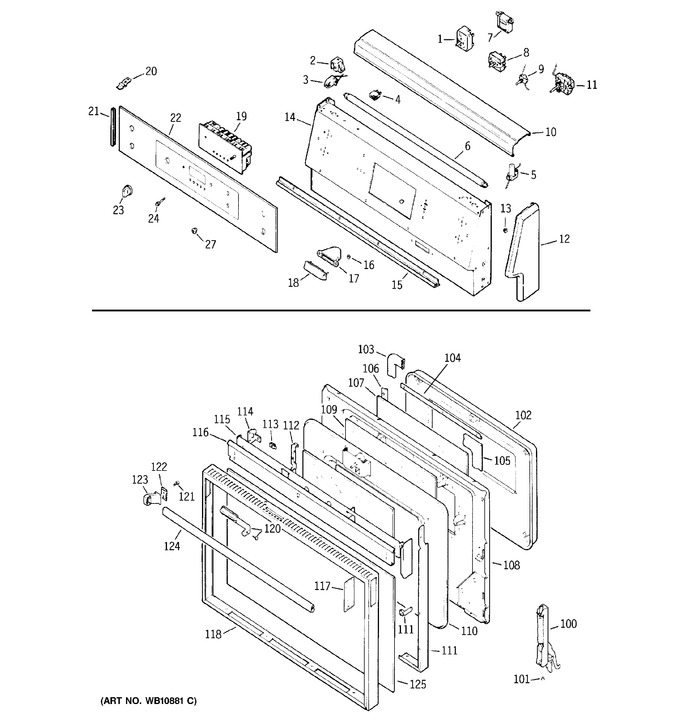

1 - Control Panel & Door Parts
2 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB23X81 | Infinite Se-1425w |
|
- | |||||
| 1 | WB23X82 | Infinite Sw-2000w |
|
- | |||||
| 2 | WB2X4941 | Bracket-lampholder-rh |
|
- | |||||
| 2 | WB2X4942 | Bracket-lampholder-lh |
|
- | |||||
| 3 | WB8X188 | Lampholder |
|
- | |||||
| 4 | WB25X88 | Pilot Light-125v |
|
- | |||||
| 4 | WB25X89 | Pilot Light-250v |
|
- | |||||
| 5 | WB8X267 | Socket-starter |
|
- | |||||
| 6 | WB2X4666 | Fluor Lamp-26t8cw4 |
|
- | |||||
| 7 | WB20X92 | Ballast |
|
- | |||||
| 8 | WB22X112 | Switch-selector |
|
- | |||||
| 9 | WB24X389 | Switch-flourescent Light |
|
- | |||||
| 10 | WB61X297 | Cover-backsplash |
|
- | |||||
| 11 | WB23X83 | Switch Sensi-temp |
|
- | |||||
| 12 | WB7X1513 | End Cap-rh |
|
- | |||||
| 12 | WB7X1512 | End Cap-lh |
|
- | |||||
| 13 | WB1X980 | Palnut End Cap Mtng |
|
- | |||||
| 14 | WB61X362 | Backsplash Assembly-ad |
|
- | |||||
| 14 | WB2X8119 | Outlet Switch Kit |
|
- | |||||
| 14 | WB61X308 | Backsplash Assembly |
|
- | |||||
| 15 | WB7X1515 | Trim-bottom |
|
- | |||||
| 16 | WB1X981 | Palnut-mtg-vent Top |
|
- | |||||
| 17 | WB38X86 | Top-vent |
|
- | |||||
| 18 | WB61X299 | Vent Cover |
|
- | |||||
| 19 | WB19X230 | Timer Assembly |
|
- | |||||
| 20 | WB1X982 | Screw |
|
- | |||||
| 20 | WB2X4944 | Retainer-ctrl Panel-lh |
|
- | |||||
| 20 | WB2X4943 | Retainer-ctrl Panel-rh |
|
- | |||||
| 21 | WB7X1514 | Trim-side |
|
- | |||||
| 22 | WB36X729 | Control Panel-glass |
|
- | |||||
| 23 | WB3X704 | Knob-timer |
|
- | |||||
| 23 | WB3X706 | Knob-inf Heat |
|
- | |||||
| 23 | WB3X705 | Knob-sensi-switch |
|
- | |||||
| 24 | WB3X707 | Knob-timer Set |
|
- | |||||
| 27 | WB36X727 | Lens-pilotlight |
|
- | |||||
| 27 | WB1X5373 | Nut-knurled-trim |
|
- | |||||
| 27 | WB24X390 | Switch-oven Lamp |
|
- | |||||
| 27 | WB61X298 | Cover-fuse Opening |
|
- | |||||
| 100 | WB14X81 | Hinge |
|
- | |||||
| 101 | WB1X997 | Screw |
|
- | |||||
| 102 | WB55X620 | Liner-muffle |
|
- | |||||
| 103 | WB2X119 | Gasket |
|
- | |||||
| 104 | WB2X4919 | Bracket-top |
|
- | |||||
| 105 | WB2X4934 | Pad-glass |
|
- | |||||
| 106 | WB2X4935 | Bracket-side |
|
- | |||||
| 107 | WB55X626 | Glass-inner |
|
- | |||||
| 108 | WB55X621 | Shield-door |
|
- | |||||
| 109 | WB55X622 | Glass-window |
|
- | |||||
| 110 | WB55X623 | Panel-retainer |
|
- | |||||
| 111 | WB2X4929 | Support Side-lh |
|
- | |||||
| 111 | WB1X1003 | Screw Support Frame |
|
- | |||||
| 111 | WB2X4924 | Support Side-rh |
|
- | |||||
| 112 | WB2X4920 | Bracket-window |
|
- | |||||
| 113 | WB2X4922 | Clip |
|
- | |||||
| 114 | WB2X4936 | Plate-mtng-lh |
|
- | |||||
| 114 | WB2X4923 | Plate-mounting-rh |
|
- | |||||
| 115 | WB2X4931 | Support-top |
|
- | |||||
| 116 | WB2X4921 | Plate-aeration |
|
- | |||||
| 117 | WB2X4938 | Plate Back-up |
|
- | |||||
| 118 | WB55X625 | Frame |
|
- | |||||
| 120 | WB15X244 | Handle-latch |
|
- | |||||
| 120 | WB1X1004 | Screw |
|
- | |||||
| 120 | WB2X4925 | Base-handle |
|
- | |||||
| 121 | WB1X1007 | Washer |
|
- | |||||
| 121 | WB1X1006 | Screw-mount Handle |
|
- | |||||
| 121 | WB1X1005 | Lockwasher |
|
- | |||||
| 122 | WB2X4928 | Base-handle |
|
- | |||||
| 123 | WB2X4926 | Ean Cap-lh |
|
- | |||||
| 123 | WB2X4927 | Ean Cap-rh |
|
- | |||||
| 124 | WB15X243 | Handle |
|
- | |||||
| 125 | WB55X624 | Glass-black |
|
- |
