SELECT A DIAGRAM
1 - Control Panel & Door Parts

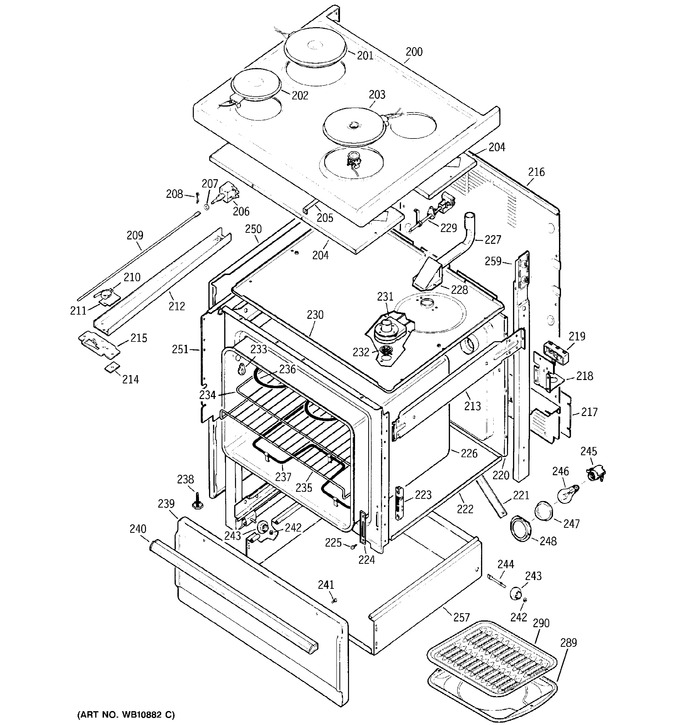

2 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | WB62X1640 | Cooktop-almond |
|
- | |||||
| 200 | WB62X1639 | Cooktop-white |
|
- | |||||
| 201 | WB30X249 | Element 7" |
|
- | |||||
| 202 | WB30X250 | Element 5" |
|
- | |||||
| 203 | WB30X246 | Element 7" Auto |
|
- | |||||
| 203 | WB64X81 | Element-cleaner |
|
- | |||||
| 204 | WB2X4915 | Support-cooktop |
|
- | |||||
| 205 | WB2X121 | Cooktop Brace-narrow |
|
- | |||||
| 205 | WB2X122 | Cooktop Brace-wide |
|
- | |||||
| 206 | WB24X386 | Solenoid |
|
- | |||||
| 207 | WB1X984 | Washer |
|
- | |||||
| 208 | WB1X985 | Cotter-pin |
|
- | |||||
| 209 | WB2X4911 | Drawbar |
|
- | |||||
| 210 | WB1X983 | Screw |
|
- | |||||
| 210 | WB24X387 | Switch-solenoid |
|
- | |||||
| 211 | WB2X4900 | Insulator-switch |
|
- | |||||
| 212 | WB2X4912 | Channel-lock |
|
- | |||||
| 213 | WB2X4917 | Channel-brace |
|
- | |||||
| 214 | WB2X4901 | Spacer |
|
- | |||||
| 215 | WB1X987 | Screw |
|
- | |||||
| 215 | WB14X79 | Plate-strike |
|
- | |||||
| 216 | WB63X265 | Cover-rear |
|
- | |||||
| 217 | WB2X4914 | Cover-access |
|
- | |||||
| 218 | WB2X4907 | Bracket Power Cord |
|
- | |||||
| 219 | WB17X199 | Terminal Block |
|
- | |||||
| 220 | WB63X266 | Main Back |
|
- | |||||
| 221 | WB2X4909 | Brace-base Channel |
|
- | |||||
| 222 | WB63X268 | Bottom-insulating |
|
- | |||||
| 223 | WB14X80 | Receiver-hinge |
|
- | |||||
| 224 | WB7X1511 | Plate-trim |
|
- | |||||
| 225 | WB1X994 | Screw |
|
- | |||||
| 226 | WB53X271 | Oven Liner |
|
- | |||||
| 227 | WB38X87 | Duct-vent |
|
- | |||||
| 228 | WB38X90 | Plate-vent |
|
- | |||||
| 228 | WB38X89 | Tube-vent |
|
- | |||||
| 228 | WB38X88 | Transfer-vent |
|
- | |||||
| 229 | WB2X4905 | Plate-tls |
|
- | |||||
| 229 | WB2X3163 | Gasket-tls |
|
$ 22.50 | |||||
| 229 | WB2X3165 | Hanger-tls |
|
- | |||||
| 229 | WB21X158 | Oven Sensor |
|
- | |||||
| 230 | WB63X267 | Bottom Burner Box |
|
- | |||||
| 231 | WB29X79 | Heater Smoke Eliminator |
|
- | |||||
| 231 | WB29X80 | Housing-smoke Eliminator |
|
- | |||||
| 232 | WB29X81 | Screen-smoke Eliminator |
|
- | |||||
| 233 | WB2X4906 | Plate-rotisserie Cover |
|
- | |||||
| 234 | WB48X196 | Rack-flat |
|
- | |||||
| 235 | WB48X197 | Rack-offset |
|
- | |||||
| 236 | WB1X989 | Screw-mtg-element |
|
- | |||||
| 236 | WB44X229 | Element-broil |
|
- | |||||
| 237 | WB44X228 | Element-bake |
|
- | |||||
| 238 | WB1X991 | Screw-leveling |
|
- | |||||
| 239 | WB56X1829 | Panel-drawer-almond |
|
- | |||||
| 239 | WB56X1828 | Panel-drawer-white |
|
- | |||||
| 240 | WB15X242 | Handle |
|
- | |||||
| 241 | WB1X998 | Screw |
|
- | |||||
| 242 | WB1X999 | Speednut-wheel |
|
- | |||||
| 243 | WB39X63 | Wheel |
|
- | |||||
| 244 | WB1X1000 | Spindle |
|
- | |||||
| 245 | WB2X4916 | Oven Lamp Sleeve |
|
- | |||||
| 245 | WB8X265 | Socket-oven Lamp |
|
- | |||||
| 246 | BUYLOCALLY | Ovenlamp-40 Watt |
|
- | |||||
| 247 | WB36X728 | Lens-oven Lamp |
|
- | |||||
| 248 | WB1X988 | Screw Retaining Ring |
|
- | |||||
| 248 | WB2X4902 | Ring-lens Retaining |
|
- | |||||
| 250 | WB63X263 | Side-panel White |
|
- | |||||
| 250 | WB63X264 | Side-panel Almond |
|
- | |||||
| 251 | WB63X269 | Shield-insulation |
|
- | |||||
| 257 | WB58X59 | Drawer Body |
|
- | |||||
| 259 | WB2X4910 | Post-corner |
|
- | |||||
| 289 | WB49X588 | Broiler Pan |
|
- | |||||
| 290 | WB49X589 | Broiler Pan Rack |
|
- |
