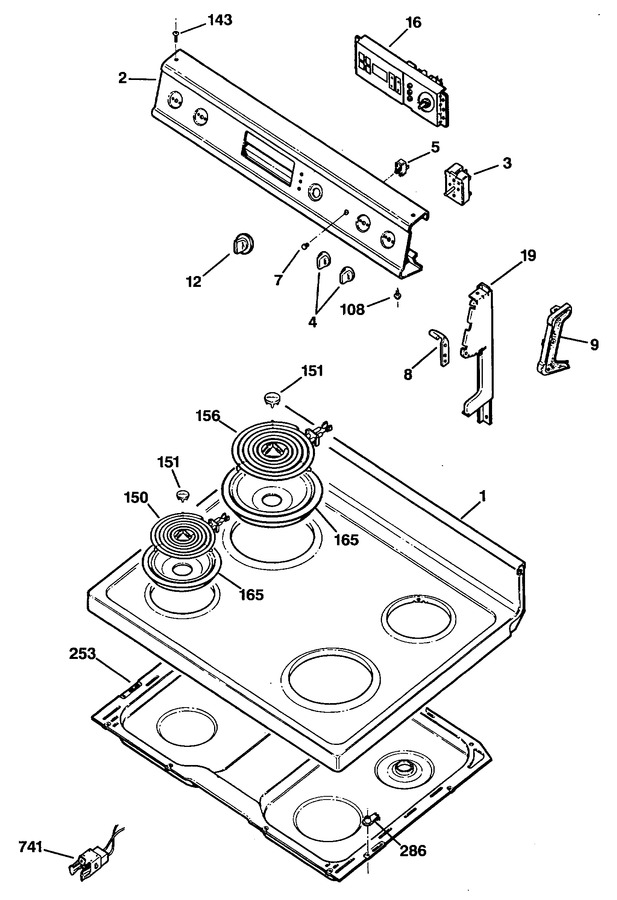

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X5408 | Cooktop Asm (white) |
|
- | |||||
| 2 | WB36X5759 | Trim & Bracket Asm |
|
- | |||||
| 3 | WB32X5095 | Sw.inf.cntrl - 8" Brnr |
|
- | |||||
| 3 | WB23X5092 | Sw Inf. Control 6" Brnr |
|
- | |||||
| 4 | WB3X5834 | Knob-surface Unit |
|
- | |||||
| 5 | WB2X7697 | Lamp Pilot 125v |
|
- | |||||
| 7 | WB25X5054 | Jewel |
|
- | |||||
| 8 | WB2X8126 | Pin Hinge R |
|
- | |||||
| 8 | WB2X8127 | Pin Hinge L |
|
- | |||||
| 9 | WB7X7130 | End Cap Right |
|
- | |||||
| 9 | WB7X7131 | End Cap Left |
|
- | |||||
| 12 | WB3X5835 | Knob Oven Set |
|
- | |||||
| 16 | WB2X8268 | Nut |
|
- | |||||
| 16 | WB9X5121 | Spring Detent |
|
- | |||||
| 16 | WB27X5527 | Control T08a |
|
- | |||||
| 16 | WB2X8313 | Cam Dual |
|
- | |||||
| 19 | WB7X7268 | Plate End Wh Rh |
|
- | |||||
| 19 | WB7X7269 | Plate End Wh Lh |
|
- | |||||
| 108 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- | |||||
| 143 | WB1X5860 | Screw |
|
- | |||||
| 150 | WB30X5129 | 6" P.i. S/u Alum |
|
- | |||||
| 151 | WG02F04803 | Trim Center (Replaces: WB31X5021) |
|
$ 4.78 | |||||
| 156 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 165 | WB32X5075 | Burner Bowl 6" Chrome |
|
- | |||||
| 165 | WB32X5076 | Burner Bowl 8" Chrome |
|
$ 10.45 | |||||
| 252 | WB49X5501 | Panel Filler White |
|
- | |||||
| 253 | WB49X5566 | Box Cooktop |
|
- | |||||
| 261 | WB10X148 | Hinge Spt Rh |
|
- | |||||
| 261 | WB10X149 | Hinge Spt Lh |
|
- | |||||
| 286 | WB2X8107 | Strike Cooktop |
|
- | |||||
| 394 | WB7X7185 | Trim Door (bk) |
|
- | |||||
| 409 | WB2X3470 | Counterweight |
|
- | |||||
| 440 | WB1X585 | Speednut |
|
- | |||||
| 450 | WB1K5181 | Spring Clip |
|
- | |||||
| 741 | WG02A00459 | Clip Receptacle (Replaces: WB2X8228) |
|
Immediately | $ 50.66 | ||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 904 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 32767 | 49-8591 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-1428 | Pm Manual Mini |
|
- | |||||
| 32767 | 31-0824 | Install Instr (anti-tip) |
|
- | |||||
| 32767 | WB18X5136 | Harness |
|
- | |||||
| 32767 | WB2X7876 | Bracket Asm Anti-tip |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- |
