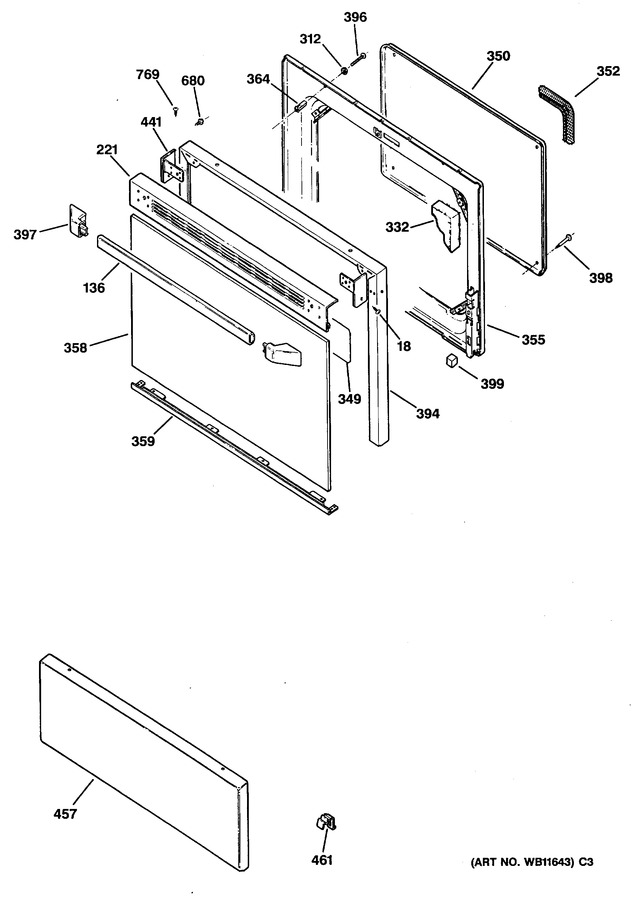

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	WR1X1768		Scr 6-20 Ab Fht 3/8 S		Appelez-nous	-
136	WB15K5076		Oven Door Handle (blk)		Appelez-nous	-
221	WB7X7186		Trim Vent (blk)		Appelez-nous	-
312	WB1X119		Washer Contoured		Appelez-nous	-
332	WB2X8445		Insulation Door		Appelez-nous	-
349	WB49X5562		Reflector		Appelez-nous	-
350	WB55X5361		Inner Panel		Appelez-nous	-
352	WB2X8423		Gasket		Appelez-nous	-
355	WB55X5392		Liner Asm Door		Appelez-nous	-
358	WB36X5684		Glass Door		Appelez-nous	-
359	WB7X7195		Trim Bottom (bk)		Appelez-nous	-
364	WB2X8443		Spacer		Appelez-nous	-
396	WB1X5872		Scr 10-16 Pl Pnp 2.5s		Appelez-nous	-
397	WB7X7183		End Cap Handle (bk)		Appelez-nous	-
398	WB1X600		Scr Shoulder		Appelez-nous	-
399	WB2X3285		Pad		Appelez-nous	-
441	WB7X7182		End Cap Door Lf (blk)		Appelez-nous	-
441	WB7X7181		End Cap Door Rt (blk)		Appelez-nous	-
457	WB56X7060		False Drawer Panel-white		Appelez-nous	-
461	WB2X8124		Clip False Panel		Appelez-nous	-
680	WR1X1850		Screw 7-19 X 1/2 Hxw		Appelez-nous	-
769	WB1X500		Screw		Appelez-nous	-
