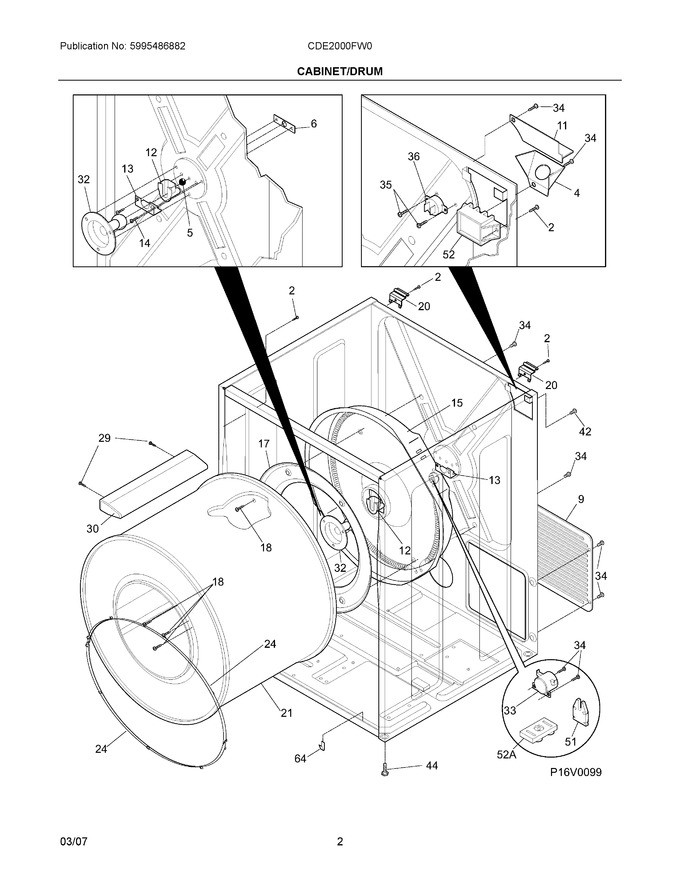

02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| 4 | 131785200 | Bracket, Elec Power Cord, Knock Out |
|
$ 30.08 | |||||
| 5 | 5303281019 | Ball, Grounding |
|
$ 18.11 | |||||
| 6 | 5303281020 | Clip, Ball, Steel, Flat Nut |
|
$ 18.90 | |||||
| 9 | 131793200 | Panel, Service Access, Rear |
|
- | |||||
| 11 | 5303211428 | Cover, Terminal Block |
|
$ 44.15 | |||||
| 12 | 131825900 | Bearing, Drum Support |
|
Immediately | $ 12.19 | ||||
| 13 | 131724301 | Bracket, Bearing Support (Replaces: 131724300) |
|
Immediately | $ 28.51 | ||||
| 14 | 131205400 | Screw, Bracket Mtg., 10-16b X 1.375, Cr/sq Drive |
|
$ 14.18 | |||||
| 15 | 131553900 | Heater Assy, W/housing/felt |
|
Immediately | $ 107.68 | ||||
| 17 | 3204254 | Baffle, Heater Shield |
|
$ 143.33 | |||||
| 18 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 15.75 | ||||
| 20 | 131469100 | Bracket, Hinge, Rear, Top Panel Mtg. |
|
$ 44.84 | |||||
| 21 | 134122532 | Drum, Dryer, Galvanized Stl., Service Kit |
|
$ 537.86 | |||||
| 24 | 137513300 | Glide, Drum (Replaces: 131963900) |
|
Immediately | $ 40.75 | ||||
| 29 | 131382300 | Screw, Quadrex Head, 10-14 X 1.00, Vane Mtg., Special |
|
Immediately | $ 14.96 | ||||
| 30 | 137552900 | Vane, Straight (Replaces: 5303201200) |
|
$ 61.05 | |||||
| 32 | 131777700 | Shaft, Drum Support, Ballhitch |
|
Immediately | $ 79.85 | ||||
| 33 | 3204267 | Thermostat, Safety |
|
Immediately | $ 59.43 | ||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.73 | |||||
| 35 | 131892100 | Screw, 6-20b X 0.230 |
|
- | |||||
| 36 | 134120900 | Thermal Limiter |
|
Immediately | $ 14.68 | ||||
| 42 | 134154100 | Screw, Hex Washer Head, 10-32 X 0.375, Ground |
|
$ 14.96 | |||||
| 44 | 134158000 | Leveling Leg, Screw |
|
- | |||||
| 51 | 131472100 | Insulator, Heater Housing |
|
$ 66.68 | |||||
| 52 | 134101400 | Terminal Block, Main |
|
Immediately | $ 62.21 | ||||
| 64 | 131704600 | Clip, Front, Cabinet Bottom |
|
$ 17.69 | |||||
| 52A | 3202786 | Terminal Block, Heater Housing |
|
$ 71.66 | |||||
| NI | 5303937141 | Stacking Kit, Washer/dryer |
|
$ 10.45 | |||||
| NI | 5303281153 | Rear Bearing Kit, Includes 5, 6, 12, 13, 14, 18, 32 |
|
Immediately | $ 51.82 | ||||
| NIA | 5303307893 | Lubricant, High Temp |
|
Immediately | $ 37.80 |
