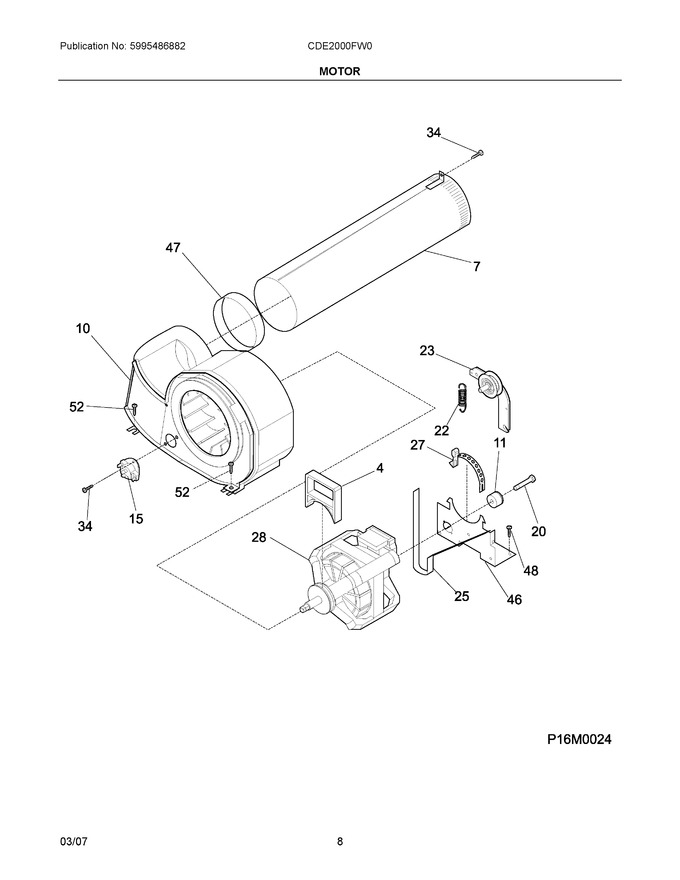

05 - Motor
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 131435200 | Lock, Blower Housing |
|
$ 81.13 | |||||
| 7 | 131451600 | Tube, Exhaust, Rear, W/mtg Bracket |
|
$ 54.02 | |||||
| 10 | 131775600 | Blower Assy, Housing, W/cover & Wheel |
|
Immediately | $ 172.70 | ||||
| 11 | 131749800 | Spacer, Idler |
|
$ 48.83 | |||||
| 15 | 134048800 | Thermostat, Control |
|
$ 122.85 | |||||
| 20 | 131017900 | Screw, Hex Head, 1/4-20t X 1.25, Spacer Mtg., Thread Cutting |
|
$ 16.07 | |||||
| 22 | 131601000 | Spring, Idler Arm |
|
Immediately | $ 91.33 | ||||
| 23 | 131863007 | Idler Arm Assy, W/pulley |
|
Immediately | $ 47.83 | ||||
| 25 | 134503600 | Belt, Dryer |
|
Immediately | $ 20.88 | ||||
| 27 | 134242400 | Clamp, Motor Mtg. |
|
Immediately | $ 39.73 | ||||
| 28 | 131560100 | Motor & Pulley Assy |
|
$ 267.34 | |||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.73 | |||||
| 46 | 134203400 | Bracket, Motor Mtg |
|
$ 46.67 | |||||
| 47 | 131633300 | Seal, Exhaust Tube |
|
$ 19.06 | |||||
| 48 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| 52 | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 14.96 | ||||
| NIA | 131456800 | Tube, Exhaust, Side/bottom, Optional Kit |
|
$ 40.32 |
