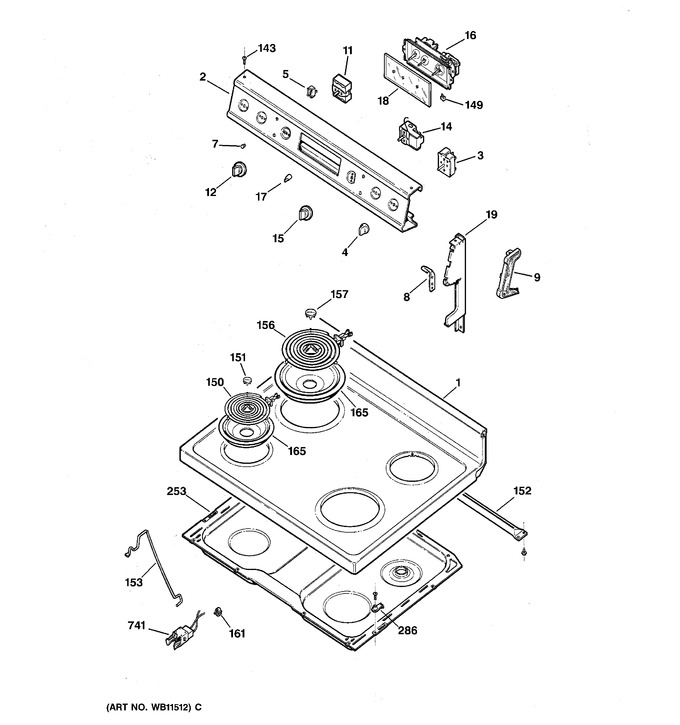

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB62X5427		Cooktop Wh		Appelez-nous	-
2	WB36X5668		Trim & Bracket Asm		Appelez-nous	-
3	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X5243)			Immediately	$ 60.94
4	WB3X5782		Surface Unit Knob		Appelez-nous	-
5	WB2X7698		Lamp Pilot 250v		Appelez-nous	-
5	WB2X7697		Lamp Pilot 125v		Appelez-nous	-
7	WB25X5054		Jewel		Appelez-nous	-
8	WB2X8127		Pin Hinge L		Appelez-nous	-
8	WB2X8126		Pin Hinge R		Appelez-nous	-
9	WB7X7144		Cap End Lh		Appelez-nous	-
9	WB7X7143		Cap End Rh		Appelez-nous	-
11	WB22X5122		Oven Switch		Appelez-nous	-
12	WB3K5103		Selector Switch Knob		Appelez-nous	-
14	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
14	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
15	WB3K5102		Thermostat Knob		Appelez-nous	-
16	WB19X5301		Timer		Appelez-nous	-
17	WB3X459		Knob Timer		Appelez-nous	-
18	WB36X5574		Crystal Timer		Appelez-nous	-
19	WB7X7161		Plate End		Appelez-nous	-
19	WB7X7163		Plate End		Appelez-nous	-
143	WB1X5754		Screw		Appelez-nous	-
149	WB2X7702		Clip Crystal		Appelez-nous	-
150	WB30X5109		Unit Asm 6 Inch Plug In		Appelez-nous	-
151	WB32X52		Center Trim		Appelez-nous	-
152	WB2X8128		Bar Torsion		Appelez-nous	-
153	WB2X8114		Rod Support		Appelez-nous	-
156	WB30K5027		8" Surf Elem		Appelez-nous	-
157	WB32X51		Trim Center		Appelez-nous	-
161	WS01A01095		Clip Wire   (Replaces: WB2X8115)			Immediately	$ 3.97
165	WB32X5076		Burner Bowl 8"				$ 10.45
165	WB32X5075		Burner Bowl 6"		Appelez-nous	-
253	WB49X5499		Box Cooktop		Appelez-nous	-
286	WB2X8107		Strike Cooktop		Appelez-nous	-
741	WZ06X0038		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
741	WG02A00459		Clip Receptacle   (Replaces: WB2X8228)			Immediately	$ 50.66
